An ibaQPanel window can be configured to fill the entire screen. If you then open it on a monitor with a different screen resolution, the size of the window changes. You can use the Automatic scaling option to automatically adapt the size of the ibaQPanel window and all the objects it contains if it is used on a monitor with a different resolution. All text sizes are also rescaled.

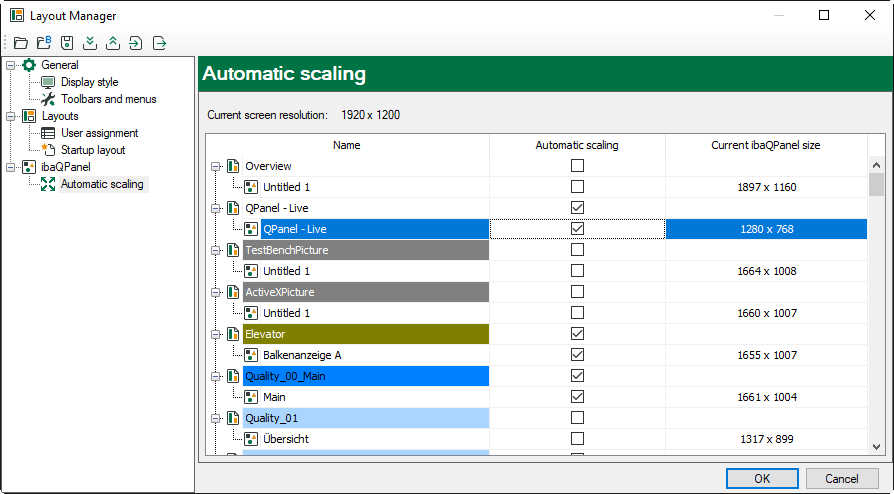

Automatic scaling can be enabled in the Layout Manager. Open the Layout Manager by selecting Configuration - Layout Manager in the menu or using the icon.

The scaling is carried out when opening ibaPDA on a screen with a different resolution. It also works on the fly if you drag the window to another screen with a different resolution.

You can enable automatic scaling separately for each window by clicking on the checkbox for the relevant window.

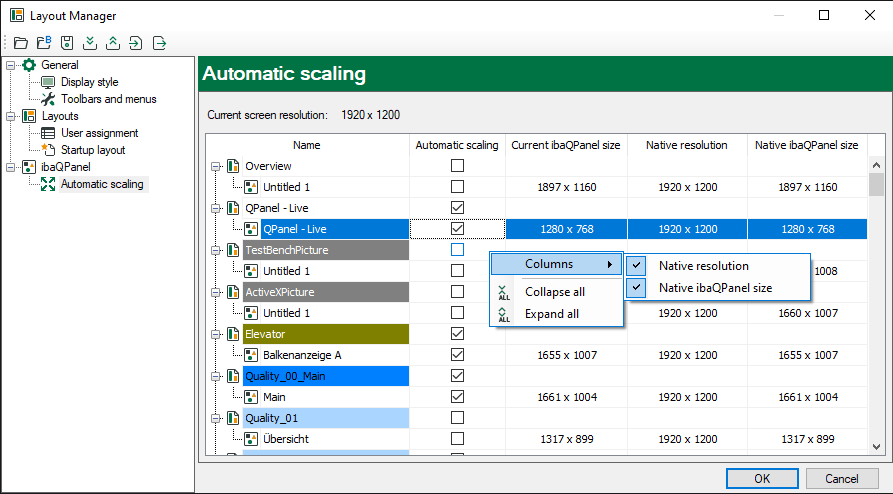

You can use the context menu to show or hide the columns in the table:

• Automatic scaling: Enable/disable automatic scaling

• Current ibaQPanel size (in pixels)

• Native resolution: Resolution of the screen on which the window was created

• Native ibaQPanel size: Size corresponding to the system resolution.

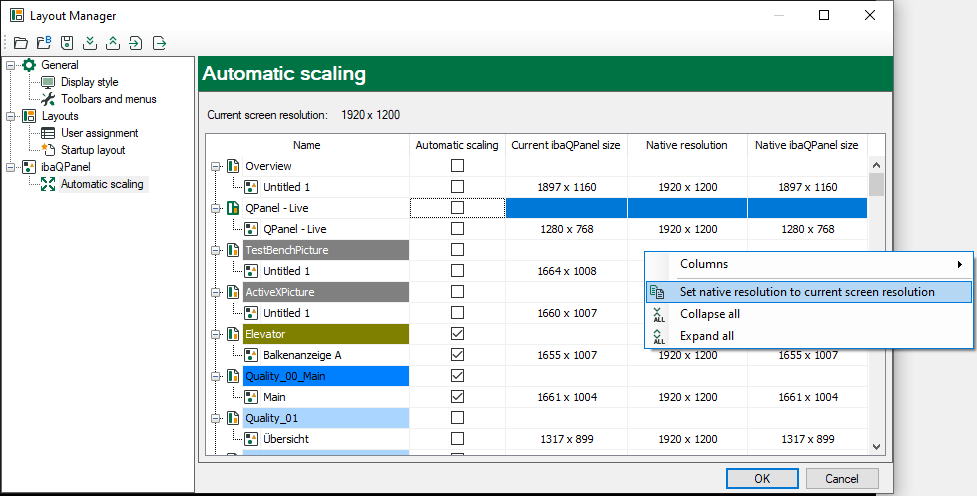

You can adjust the native resolution to the current screen resolution. To do this, right-click to open the context menu in the Native resolution column and select Set native resolution to current screen resolution.

When you open an existing layout with an ibaQPanel window for the first time in the new version, the native resolution is initialized to the current screen resolution and the native size to the current size.
