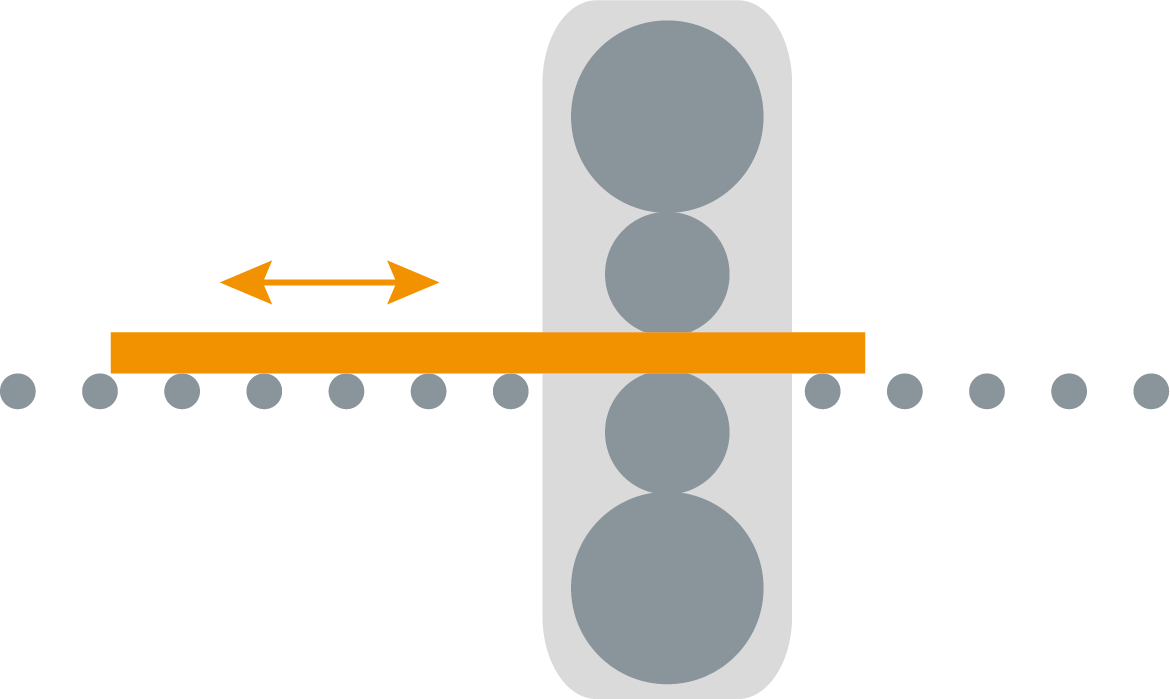

Roughing stand in hot rolling mill, skin pass mill / reversing stand in cold rolling mill
Key features
-
Reversal of start and end of strip with each pass
-
Material elongation
-
On the reversing stand in a hot rolling mill, the material normally completely leaves the stand with each pass. By contrast, on a reversing stand in a cold rolling mill the material does not leave the stand, as it remains stretched on the coiler between the passes.
Note |
|
|---|---|
 |
In ibaQDR only the complete reversing is currently mapped, i.e. the material passes through the stand completely with each pass. |
Typical measured values
Thickness, width, temperature, rolling force
ibaQDR
|
Property |
Remark |
|---|---|
|
Tracking ID |
With initial pass |
|
Tracking start |
Material detection in stand |
|
First measuring location |
Identical to tracking start |
|
“Finished” signal |
Last pass + material leaves stand |
|
Length resolution |
1 m |
