Key features
-
No strict line operation, frequent changes of direction (forwards/backwards)
-
Frequently: Division cuts, discharge of material and welding operations
Typical measured values
Width, thickness, strip tension, oil coverage
ibaQDR
|
Property |
Remark |
|---|---|
|
Tracking ID |
One ID per strip The ID signal must be set to 0 between the entry products. |
|
Tracking start |
Material detection at first measuring location |
|
First measuring location |
Identical to tracking start |
|
“Finished” signal |
Strip detection at coiler or shear cut |
|
Length resolution |
1 m |
Example:

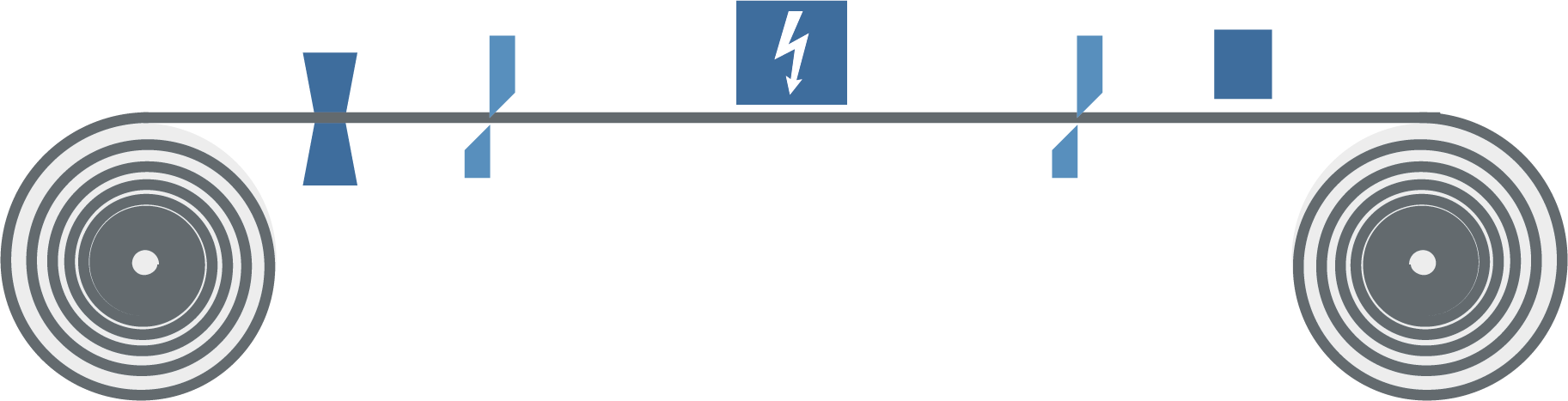

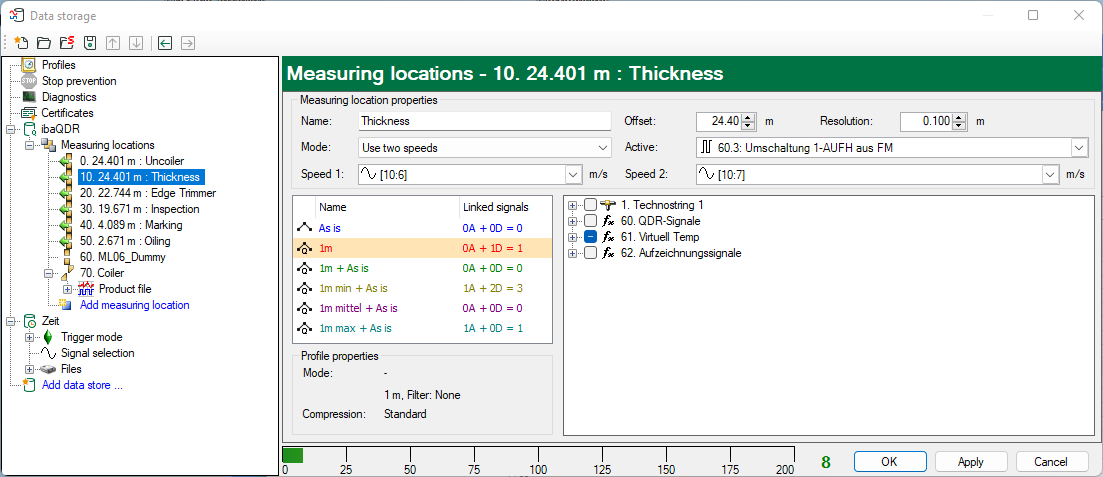

In this inspection line, as can be seen from the top diagram, there are two shears and thus two speeds to be taken into account. The coiler has been defined as the standard measuring location, with the tracking start measuring location before it as a dummy. The other measuring locations have been defined as “in front of the tracking start” type and the mode for two speeds has been set.
