Key features
-
Reversing function on individual stands
-

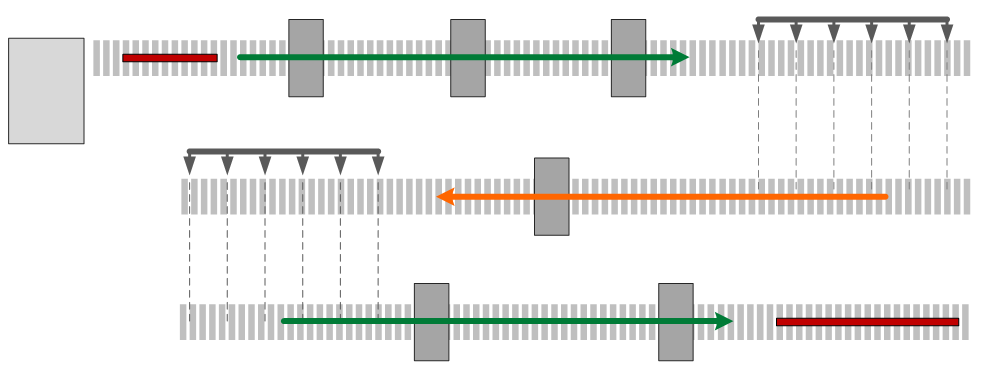

Reversal of production direction from one roll stand to the next by lateral transportationNote that at each first measuring location after lateral transportation the Mirror head and tail option must be enabled.
Typical measured values
Width, thickness
ibaQDR
|
Property |
Remark |
|---|---|
|
Tracking ID |
One ID per billet/beam The ID signal must be set to 0 between the entry products. |
|
Tracking start |
Material detection on first stand |
|
First measuring location |
Identical to tracking start |
|
“Finished” signal |
Product end detection at last measuring location |
|
Length resolution |
1 m |
