ibaPDA has a built-in SNMP server.

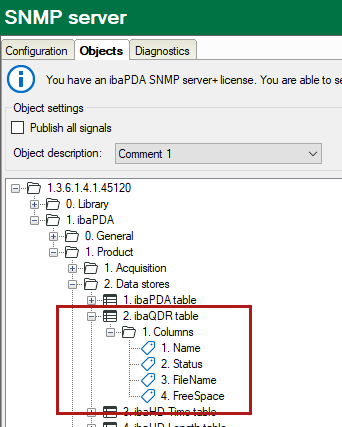

In addition to the standard information, for ibaQDR, it contains the information for the ibaQDR data store:
-
Name
-
Status
-
DAT file name
-
Free space on disk
In combination with the additional license ibaPDA-SNMP-Server+ (order no. 30.670050), you can make every acquired or calculated signal available as object on the the SNMP server.
Other documentation |
|
|---|---|
 |
You can find further information in the manual for the ibaPDA product, Part 2 “I/O Manager”. |
