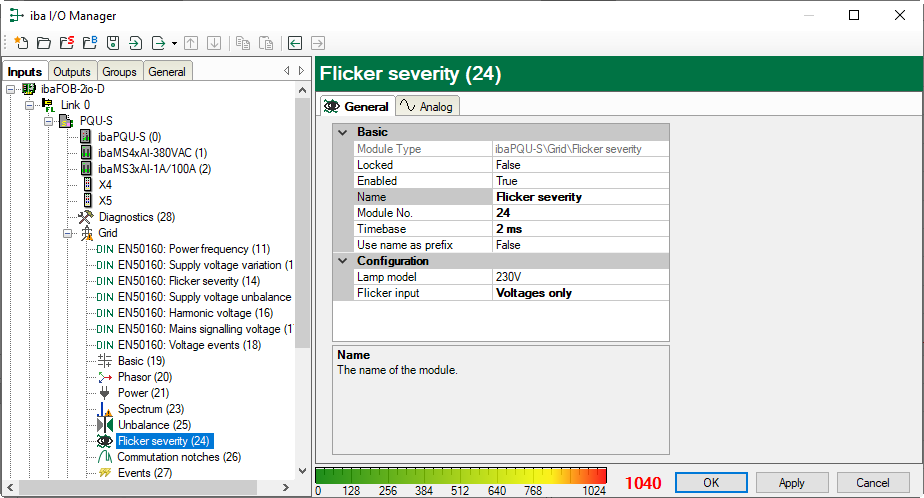

General tab
Basic settings

See EN50160 submodule: Power frequency.
Configuration

Lamp model

To calculate the flicker, the lamp model to be used, 230 V or 120 V, has to be specified.

Flicker input

  • Only voltages

    For the calculation only voltages are being used.

  • Only currents

    For the calculation only currents are being used. For this purpose, you need to indicate for each conductor its impedance in Ohm.

  • Voltages and currents

    The flicker for voltages and currents is calculated. For the current flicker calculation you need to indicate the impedance of the single conductors.

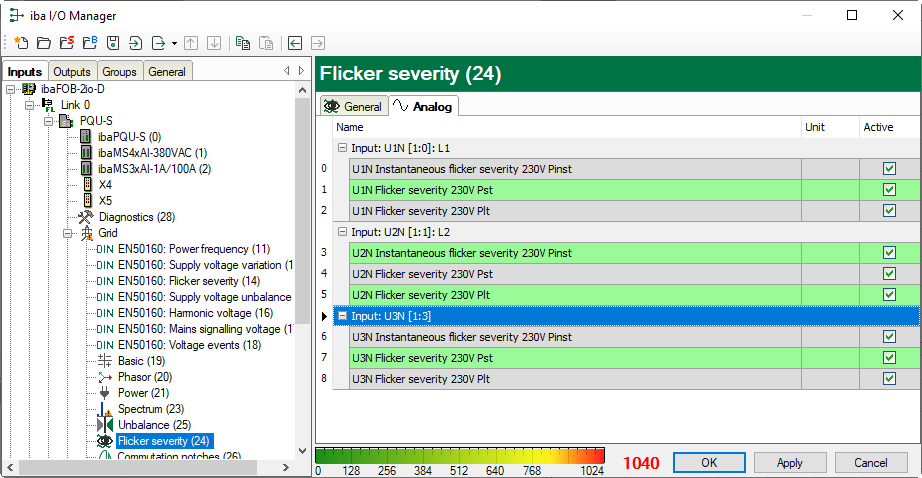

Analog tab

Signal

Description

U# Instantaneous flicker severity ###V half period

Value for the current flicker severity

U# Flicker severity ###V 10 min

Short-term flicker level Pst

U# Flicker severity ###V 2 h

Flicker value according to a cubic average of Pst values

Name

The names are set by default but can be edited. For unambiguous identification, they contain the input channel and the characteristic value. You can additionally assign two comments when clicking the  symbol in the Name field.

Unit

Display of the relevant unit.

Active

Here you can enable or disable the signal.
