General tab
Basic settings

See EN50160 submodule: Power frequency.
Configuration

  • The Configuration section shows the characteristic values determined by this module as well as the measurement interval. Here: Voltage events acc. to EN50160, half period.

  • You can enable or disable all signals of this module via a drop-down menu.

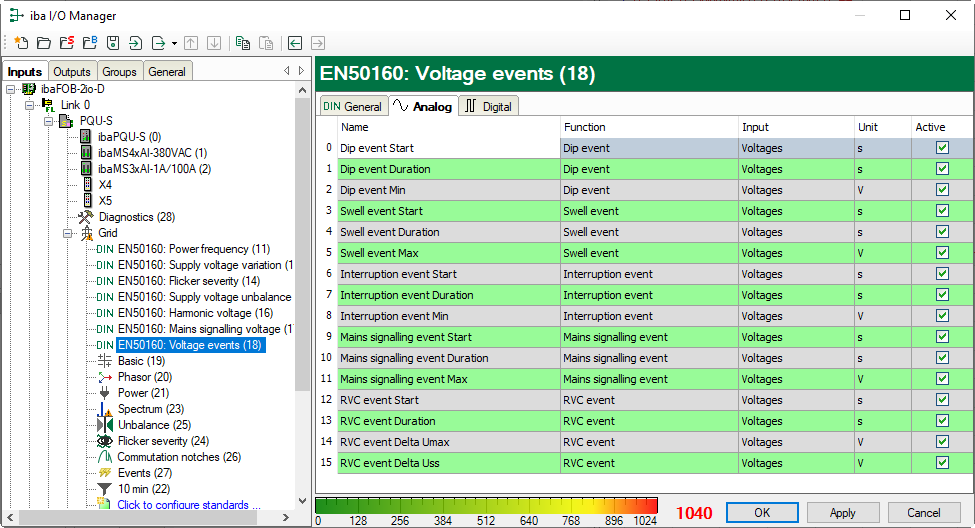

Analog tab

Name

The names of the voltage events are assigned by default. You can additionally assign two comments when clicking the  symbol in the Name field.

Function, input, unit

Displays the corresponding property

Active

Here you can enable or disable the signal.

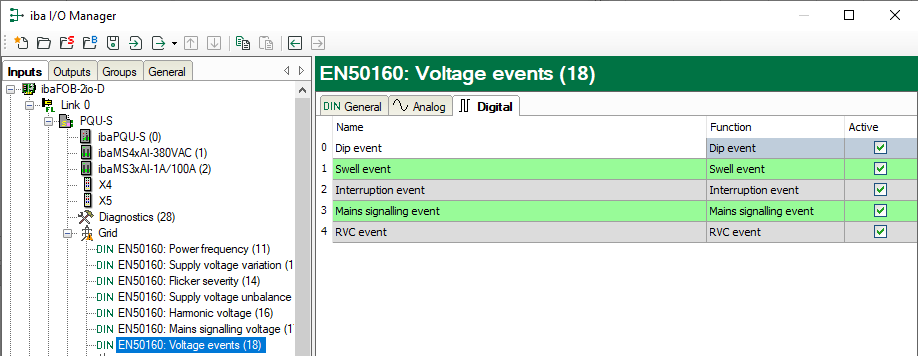

Digital tab

Name

The names of the voltage events are assigned by default. You can additionally assign two comments when clicking the  symbol in the Name field.

Function

Displays the corresponding property

Active

Here you can enable or disable the signal.
