General tab
Basic settings

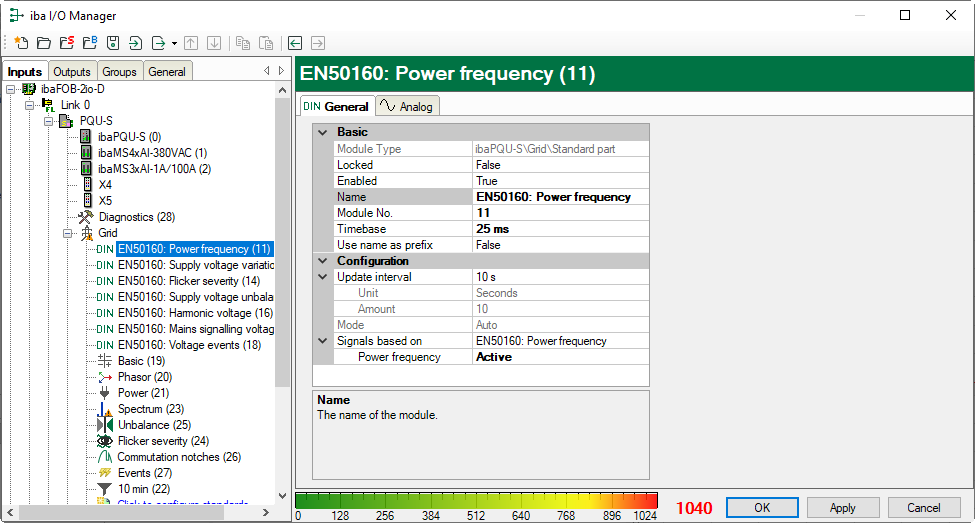

See PQU-S – General tab.
Time base
Each submodule has its own time base. The default setting should not be changed.
Configuration
The Configuration section shows the characteristic value that is determined by this module as well as the measurement interval. Here: Power frequency acc. to EN50160, 10 s
You can enable or disable all signals of this module via a drop-down menu.

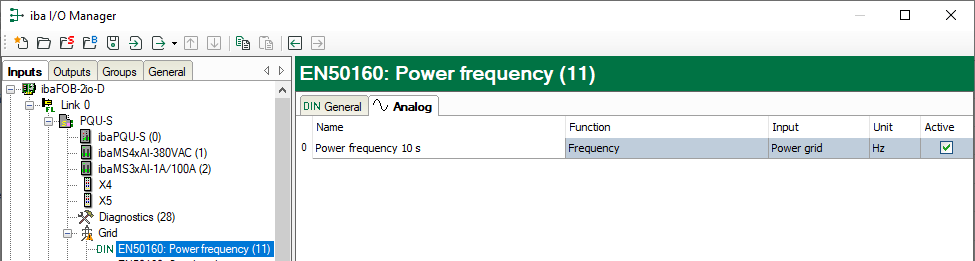

Analog tab
Note |
|
|---|---|
 |
All Analog tabs display the signals calculated in the corresponding submodule. It is not possible to delete signals or add new signals. However, the listed signals can be enabled or disabled individually. |
Name
The names are already preset. For unambiguous identification, they contain the input
channel, the characteristic value and the measurement interval. You can additionally
assign two comments when clicking the
symbol in the Name field.
Function, input, unit
Displays the corresponding property.
Active
Here you can enable or disable the signal.
