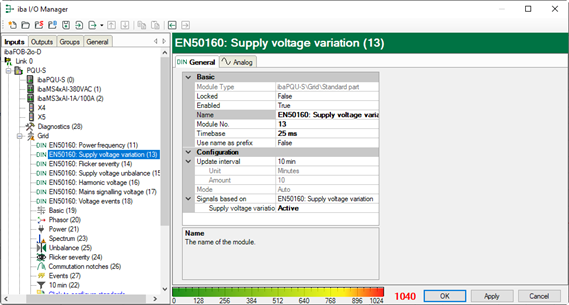

General tab
Basic settings

See EN50160 submodule: Power frequency.
Configuration

  • The Configuration section shows the characteristic values determined by this module as well as the measurement interval. Here: Supply voltage variation acc. to EN50160, 10 min.

  • You can enable or disable all signals of this module via a drop-down menu.

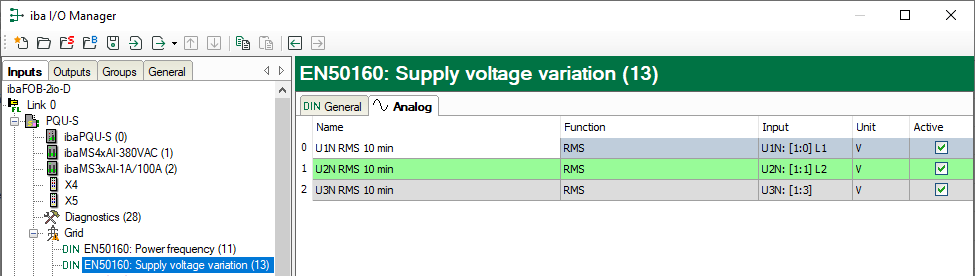

Analog tab

Name

The names are already preset. For unambiguous identification, they contain the input channel, the function and the measurement interval. You can additionally assign two comments when clicking the  symbol in the Name field.

Function, input, unit

Displays the corresponding property.

Active

Here you can enable or disable the signal.
