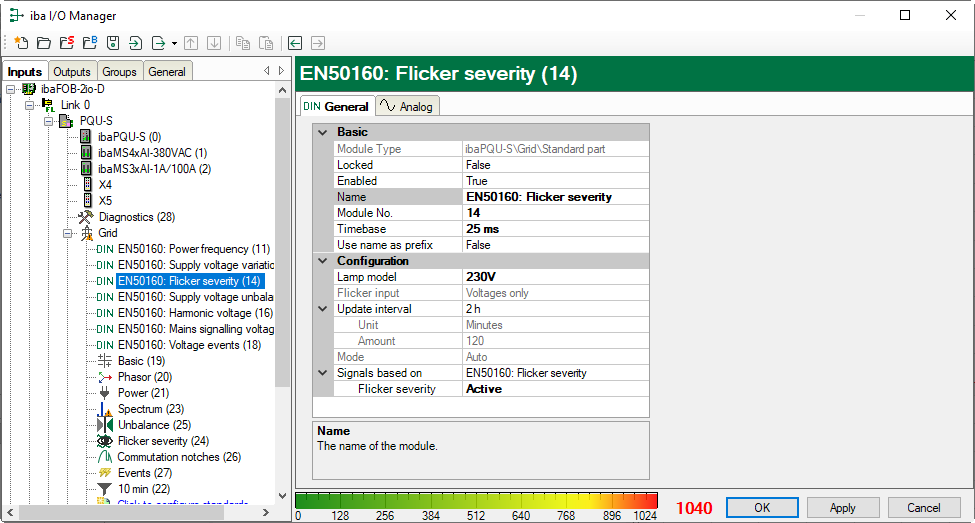

General tab
Basic settings
Configuration
To calculate the flicker, the lamp model to be used, 230 V or 120 V, has to be specified.
If the “Enable currents” option is “True” in the grid options, you need to indicate for each conductor its impedance in Ohm.

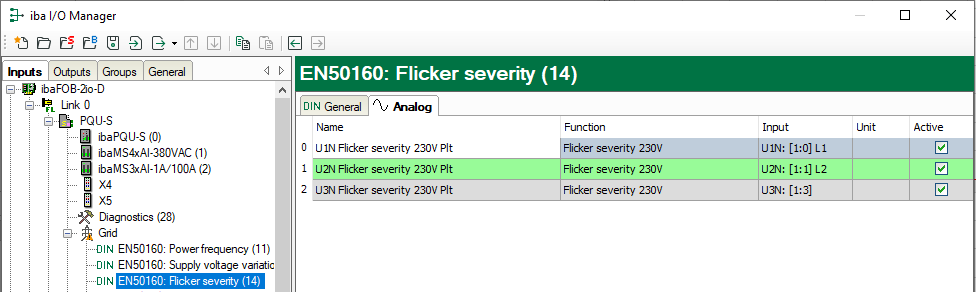

Analog tab
Name
The names are already preset. For unambiguous identification, they contain the input channel, the characteristic value and the measurement interval.
Function
Calculation function used by ibaPQU-S.
Input
The signal used for calculation.
Unit
Display of the relevant unit.
Active
Here you can enable or disable the signal.
