General tab

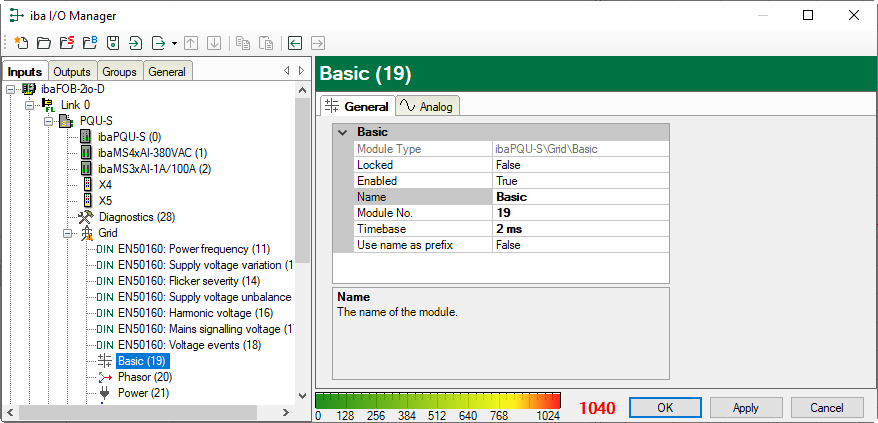

Basic settings

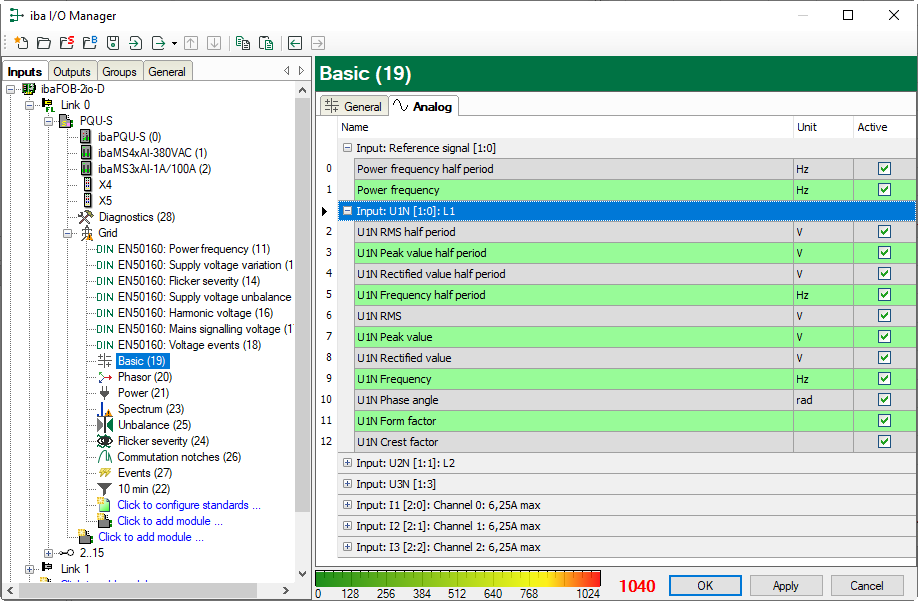

Analog tab
The Basic submodule acquires the following characteristic values:
-
Power frequency in 200 ms and half period measurement intervals, respectively
-
For each input: RMS value, peak value, rectified value and frequency in 200 ms and half period measurement intervals
-
For each input: Phase angle, form factor, crest factor, measurement interval 200 ms.
In the signal display, the signals are grouped by input. Click the <+> sign before the group name to show the signals of a group.
Name
The names are set by default but can be edited. For unambiguous identification, they
contain the input channel and the characteristic value. You can additionally assign
two comments when clicking the
symbol in the Name field.
Unit
Display of the relevant unit.
Active
Here you can enable or disable the signal.
