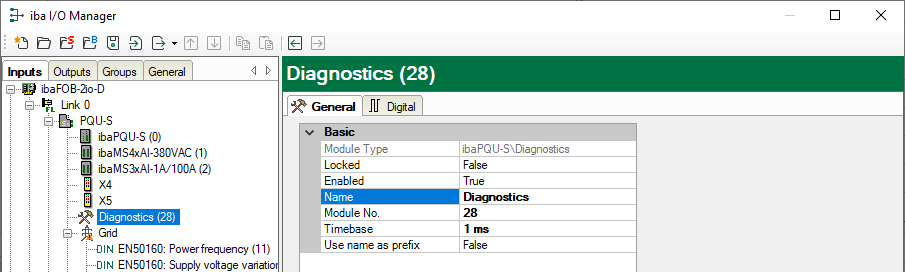

In the Diagnostics module, diagnosis signals are available. The module has to be added manually by right-clicking the PQU-S module and selecting Diagnostics from the context menu.
Basic settings
Module Type, Locked, Enabled, Name, Comment, Module No., Use module name as prefix
See PQU-S – General tab.
Timebase

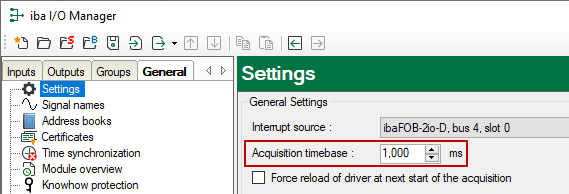

The timebase is related to the general acquisition timebase of the ibaPDA system. The timebase here cannot be faster than the general acquisition timebase.
