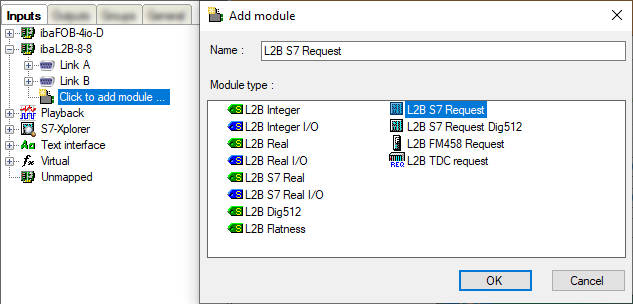

The module types L2B S7 Request and L2B S7 Request Dig512 are available.
You can find the description of all settings that are identical for all Request-S7 modules in chapter General module settings .
The L2B modules have the following common specific setting options:
PROFIBUS
Slave number
PROFIBUS slave address assigned to the module.
Timeout
Waiting time in seconds before the firmware regards the connection as interrupted.
Connection settings
In contrast to the Request-S7 solutions with the ibaBM-DP and ibaBM-DPM-S devices, no additional connection settings are required. The Request Handshake is done via a part of the I/O peripheral area.
