When you select an L2B card node in the signal tree, ibaPDA displays a status overview of the card. The green checkmark on the slave number indicates an active connection. In the figure slaves 0 to 2 are active.

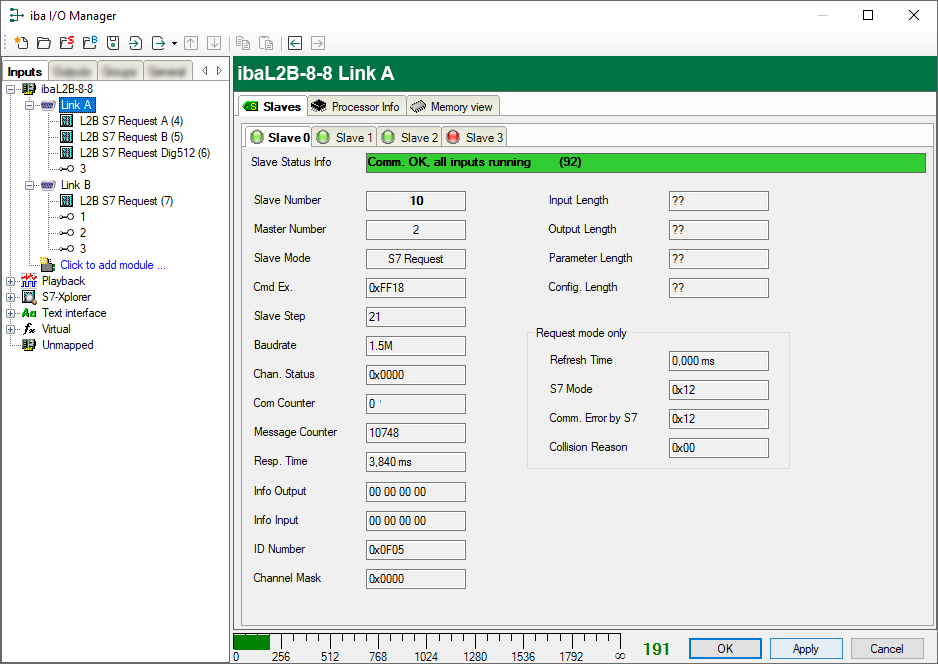

When you select the PROFIBUS link, you can see detailed information regarding the status of each slave. This information is mainly relevant for support purposes.
