Perform the following steps for ibaCom-L2B:

1. Link the DP interface of the CPU or CP as DP master to a PROFIBUS network.

2. Install the GSD file IBA_0F05.GSD via the menu Options – Installing GSD-files.

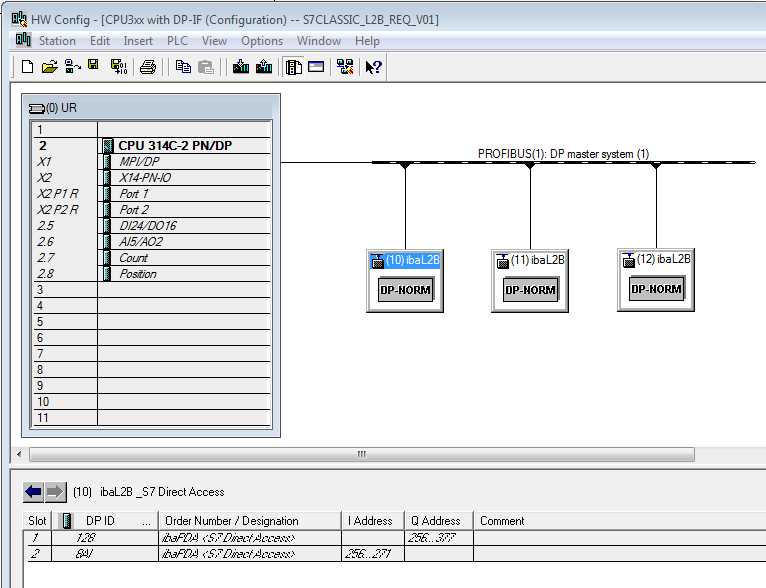

3. After the installation finished, the iba-GSD-file is in the HW catalog under: Profibus-DP – Additional Field Devices – General – ibaL2B <S7 Direct Access>

4. Attach the desired number of DP slaves "ibaL2B <S7 Direct Access>" to the PROFIBUS and set the DP addresses. The peripheral addresses are assigned automatically to the slaves as addresses in ascending order.

5. Load the HW config/system data to the S7-CPU.
