For ibaBM-PN in redundancy mode, configure a separate PROFINET device for each PROFINET device in use.
Use the same GSDML file as for normal operation (from version V2.35-20200101).
Note |
|
|---|---|
 |
You find the latest version of the GSDML file on the data storage medium "iba Software & Manuals" in the following directory:
|

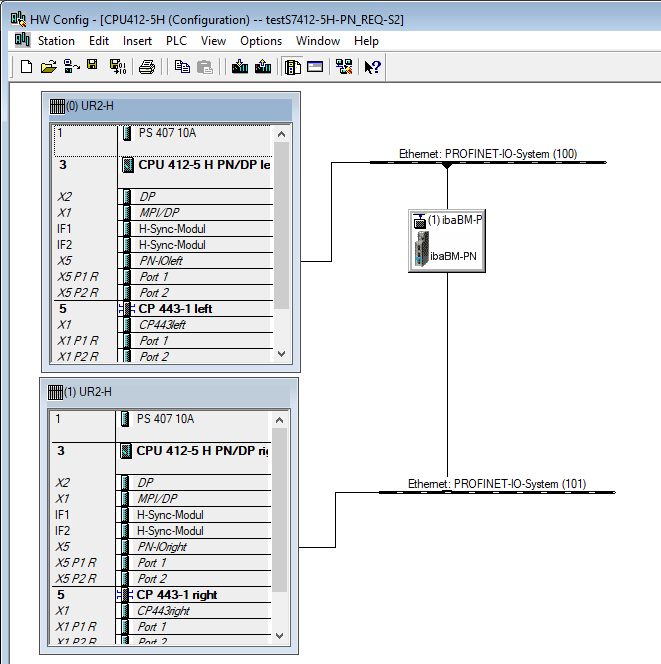

When inserting an ibaBM-PN in a redundant hardware configuration, this is automatically connected with both PROFINET IO systems.

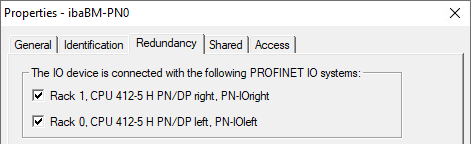

You can configure the connection in the Redundancy tab of Properties.
Apply this hardware configuration to operate ibaBM-PN in the S2 redundancy mode.
