For ibaBM-DP in redundancy mode, Specify a separate ibaBM-PROFIBUS slave for each PROFIBUS master.

Use the GSD file ibaDPMSi.gsd (version V2.2 and higher).

Note
	You find the GSD file ibaDPMSi.gsd on the data storage medium "iba Software & Manuals" in the following directory: \02_iba_Hardware\ibaBM-DP\02_GSD_Files\01_General\

Note
	The modules have to be created for each slave without gaps and with sequential start addresses.

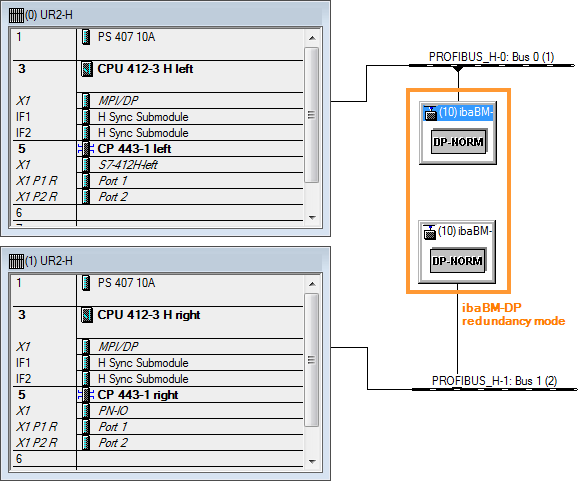

The following figure shows an exemplary hardware configuration for a redundant system.

Both configured slaves have to be configured with identical bus addresses. The I/O address ranges are different. Use the modules "S7-Req block consistent Slot 0 / Slot 1".

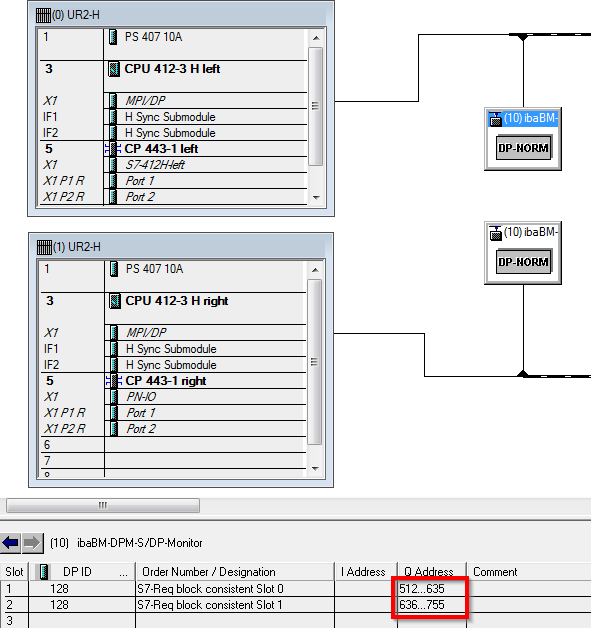

The following figure shows the slave I/O addresses for Bus 0.

The following figure shows the slave I/O addresses for Bus 1.
