For ibaBM-DP, specify an iba-PROFIBUS slave for each module.

Use the GSD file ibaDPMSi.gsd (version V2.2 and higher).

Note
	You find the GSD file ibaDPMSi.gsd on the data storage medium "iba Software & Manuals" in the following directory: \02_iba_Hardware\ibaBM-DP\02_GSD_Files\01_General\

Use the elements "S7-Req block consistent Slot 0 / Slot 1".

The following figure shows the net view.

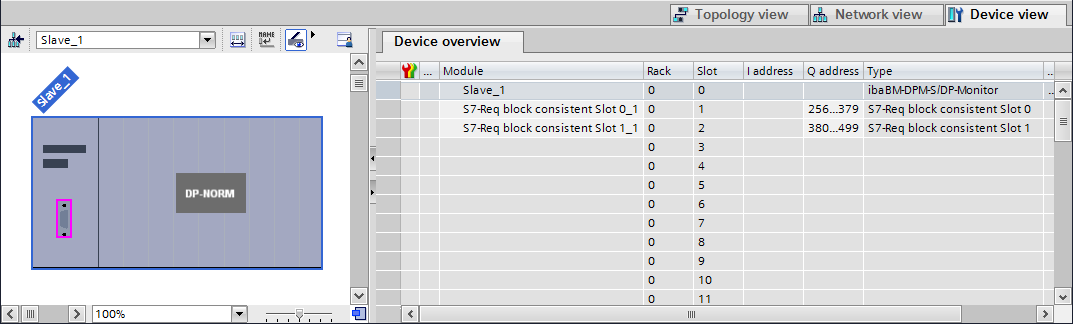

The following figure shows the device view.
