For ibaBM-DP, specify an iba-PROFIBUS slave for each module.

Use the GSD file ibaDPMSi.gsd (version V2.2 and higher).

Note
	You find the GSD file ibaDPMSi.gsd on the data storage medium "iba Software & Manuals" in the following directory: \02_iba_Hardware\ibaBM-DP\02_GSD_Files\01_General\

Note
	The slots have to be created without gaps and with consecutive address range.

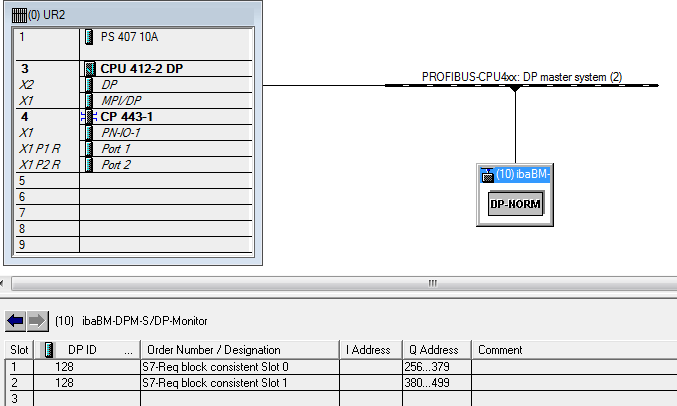

S7-CPUs of newer type ¹ provide consistent slots with a max. of 128 Bytes. Use the elements "S7-Req block consistent Slot 0 / Slot 1".

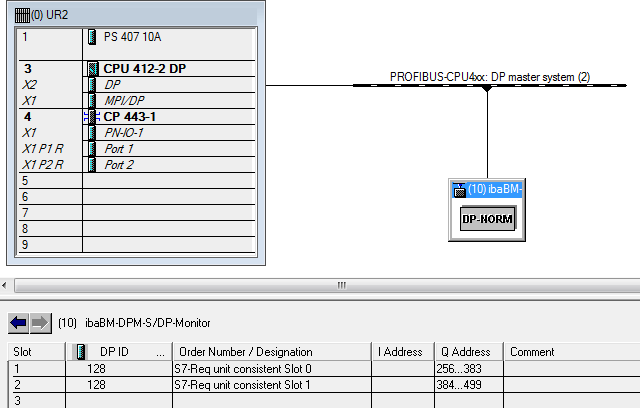

For S7-CPUs and for CP443-5 of older types, you cannot use long consistent slots. Use the elements "S7-Req unit consistent Slot 0 / Slot 1".
