Device configuration

Up to TIA Portal V18, make the following settings in the TIA Portal:

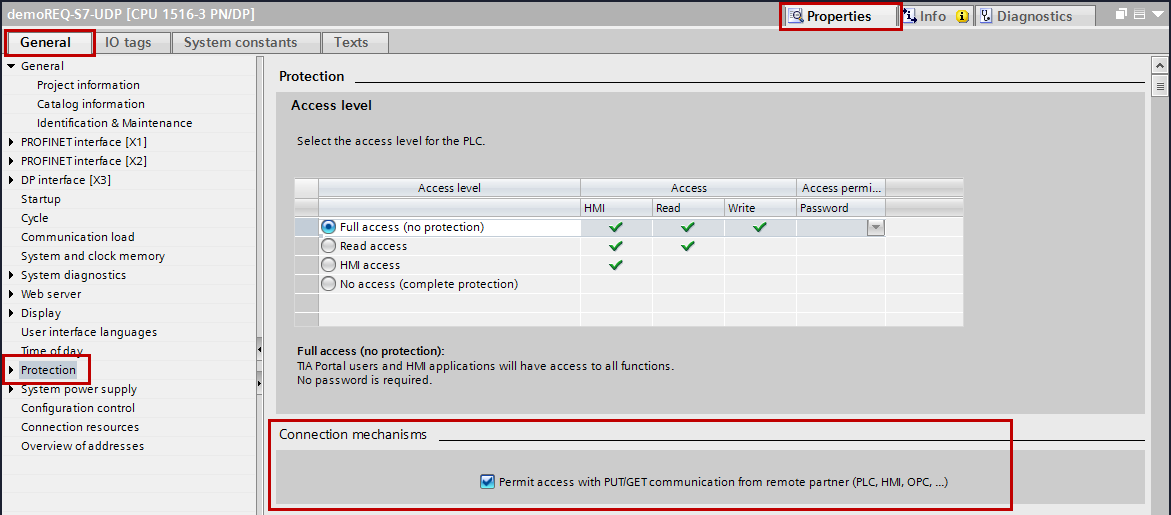

In the CPU properties (Properties – General – Protection – Connection mechanisms), activate the access via PUT/GET communication.

For the S7-1200, this option is only available firmware V4.0 or higher.

As of TIA Portal V19 and CPU firmware V3.1 (V4.7 for S7-1200), activate the PUT/GET access for S7-1500 and S7-1200 CPUs as follows:

1. In the project navigation, navigate to Security settings – Users and roles – Roles tab.

2. Add a new role and enter a name, e.g. "Put/Get".

3. In the Runtime rights tab, select your PLC under Function rights categories.

4. Under Function rights, activate the access level HMI access.

5. Under Users and Roles, go to the Users tab.

6. Activate the user "Anonymous".

7. Confirm the following message with <OK>.

8. Under Assigned roles, assign the newly created role to the anonymous user.

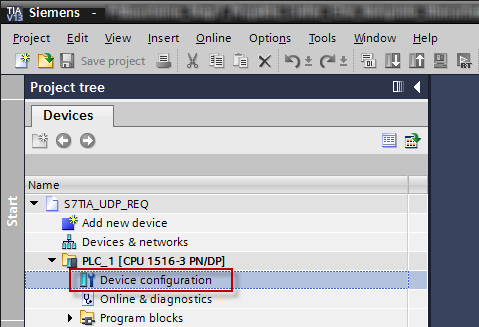

9. In the Device view, open the properties of the CPU.

10. In the section navigation, navigate to Protection & Security – Connection mechanisms.

11. Activate the option Permit access with PUT/GET communication from remote partner.

12. Save and compile the configuration and load the changes into the CPU.

You can find further information in the SiePortal under https://support.industry.siemens.com/cs/ww/en/view/109925755.
