Beschreibung der Formalparameter

Name

Art

Typ

Beschreibung

interfaceId

IN

HW_ANY

HW-Kennung der genutzten Schnittstelle

connectionId

IN

CONN_OUC

eindeutige Verbindungs-ID des Sendebausteins (TSEND_C)

localPort

IN

UINT

lokale Portnummer

reset_com

IN

BOOL

FALSE: kein Reset (Standard) TRUE: Reset der Kommunikationsverbindung

DB_PDA

INOUT

DB_ANY

DB der ibaPDA-Kommunikationsschnittstelle ibaREQ3sym_DB_PDA

state

OUT

STRING[16]

Bausteinstatus

errorTsend

OUT

WORD

Sammelfehlercode der intern aufgerufenen Tsend Bausteine

errorTcon

OUT

WORD

Fehlercode des intern aufgerufenen Tcon Bausteins

errorTusend1

OUT

WORD

Fehlercode des intern aufgerufenen Tusend1 Bausteins

errorTusend2

OUT

WORD

Fehlercode des intern aufgerufenen Tusend2 Bausteins

lostSamples

OUT

UNIT

Zähler für verlorene Messwerte

Folgende SIMATIC-Standard-Bausteine werden intern verwendet:

  • TCON

  • TUSEND

  • TDISCON
Detaillierte Beschreibung

interfaceId

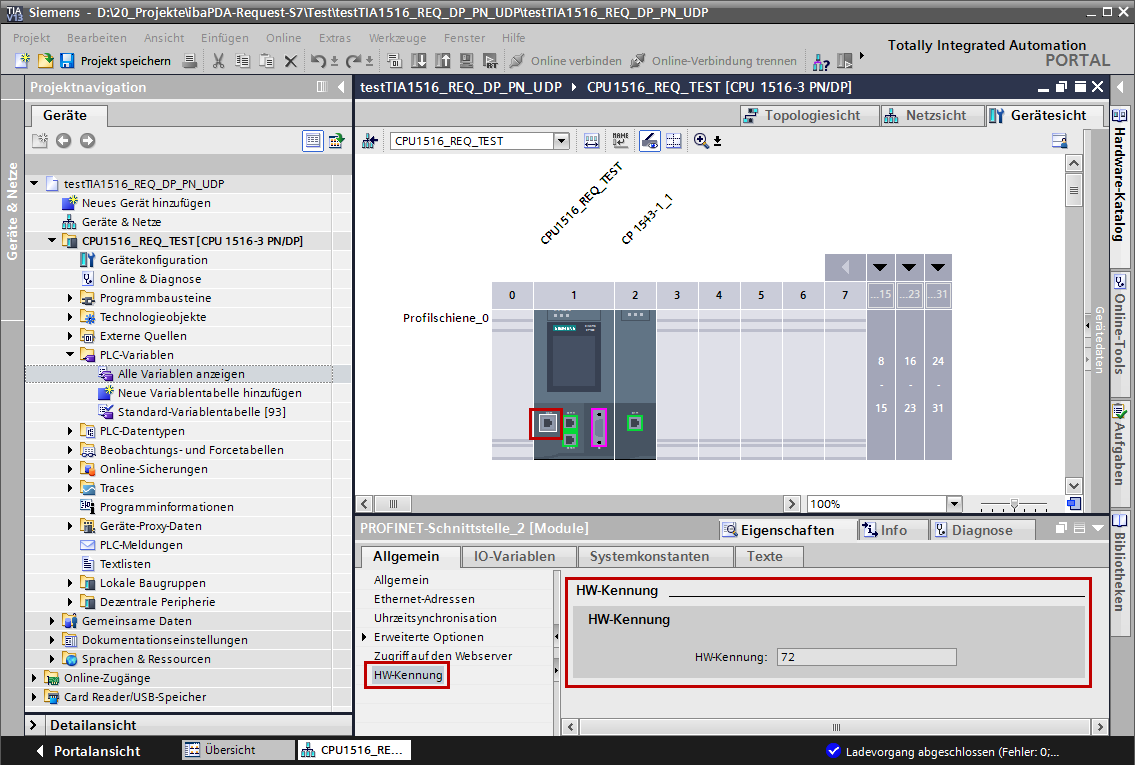

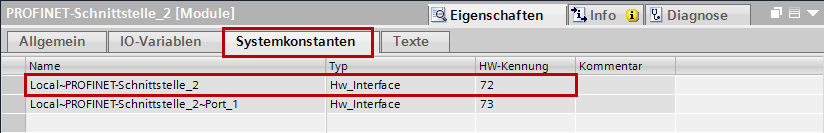

Die HW-Kennung der genutzten Schnittstelle ist eine Konstante im TIA Portal und abhängig von der konfigurierten Hardware.

connectionId

Eindeutige Referenz auf die aufzubauende Verbindung, Wertebereich: 1 bis 4095.

localPort

Nummer des lokal verwendeten Ports

reset_com

Dient zum manuellen Rücksetzen der Kommunikationsverbindung.

DB_PDA

Zeiger auf den Kommunikationsdatenbereich. Über diesen Bereich findet der Datenaustausch mit ibaPDA statt. Konfigurieren Sie bei allen zusammengehörigen Request-Blöcken den identischen DB.

state

Bausteinstatus in Klartext

errorTsend

Sammelfehlercode der intern aufgerufenen Tsend Bausteine

errorTcon

Fehlercode des intern aufgerufenen Tcon Bausteins

errorTusend1

Fehlercode des intern aufgerufenen 1. Tusend Bausteins

errorTusend2

Fehlercode des intern aufgerufenen 2. Tusend Baustein

Eine Auflistung aller möglichen Fehlercodes der Systembausteine Tsend, Tusend, Tcon finden Sie in der Siemens-Dokumentation.

lostSamples

Der Zähler wird bei jedem Bausteinaufruf inkrementiert, falls kein neues UDP-Telegramm an ibaPDA gesendet werden kann, da der vorhergehende Sende-Auftrag noch nicht abgeschlossen ist. Ein stetig ansteigender Wert deutet auf einen Engpass bei der Kommunikationsperformance hin.

Fehlercodes

errorTcon

Hexadezimalwert Statusmeldung

Beschreibung

W#16#0000

Connection successfully established.

W#16#7000

No job processing is active.

W#16#7001

Start job execution, establish connection.

W#16#7002

Connection is being established (REQ irrelevant).

Hexadezimalwert Fehler

Beschreibung

W#16#8085

Connection ID (ID parameter) is already used by a configured connection.

W#16#8086

The ID parameter is outside the valid range.

W#16#8087

Maximum number of connections reached; no additional connection possible.

W#16#8089

The CONNECT parameter does not point to a connection description or the connection description was created manually.

W#16#809A

The structure at the CONNECT parameter is not supported on an integrated interface or the length is invalid.

W#16#809B

The element interfaceld with in the TCON_xxx structure does not reference a hardware identifier of a CPU or CM/CP interface or has the value "0".

W#16#80A1

The specified connection or the port is already used.

W#16#80A2

Local or remote port is used by the system. The following ports are reserved locally: 20, 21, 80, 102, 135, 161, 162, 443, 34962, 34963, 34964 as well as the area 49152 to 65535.

W#16#80A3

ID is used by a connection created by the user program, which uses the same connection description at the CONNECT parameter.

W#16#80A4

IP address of the remote connection endpoint is invalid, or it matches the IP address of the local partner.

W#16#80A7

Communication error: You executed TDISCON before TCON had completed.

W#16#80B4

Only with TCON_IP_RFC: The local T selector was not specified, or the first byte does not contain the value 0x0E (only with a length of T selector = 2) or the local T selector starts with "SIMATIC-".

W#16#80B5

Only passive connection establishment is permitted for connection type 13 = UDP (parameter ActiveEstablished of the structure TCON_IP_v4/TCON_PARAM has the value TRUE).

W#16#80B6

Parameter assignment error in the ConnectionType parameter of the data block for connection description.

  • Only valid with TCON_IP_v4: 0x11, Ox0B and 0x13

  • Only valid with TCON_IP_RFC: 0x0C and 0x12

W#16#80B7

With TCON_IP_v4:

  • TCP (active connection establishment): Remote port is "0".

  • CP (passive connection establishment): Local port is "0".

  • UDP: Local port is "0".

  • IP address of the partner endpoint is set to 0.0.0.0.

With TCON_IP_RFC:

  • For local (LocalTSelector} or remote (RemoteTSelector} T selector, a length greater than 32 bytes is specified.

  • For TSelLength of the T selector (local or remote), a length greater than 32 is specified.

  • Error in the length of the IP address of the specific connection partner.

  • IP address of the partner endpoint is set to 0.0.0.0.

W#16#80B8

Parameter ID in the local connection description (structure at CONNECT parameter) and parameter ID of the instruction are different.

W#16#80C3

All connection resources are assigned, or ports are dynamically used by other applications or connections.

W#16#80C4

Temporary communication error:

  • The connection cannot be established at this time.

  • The connection cannot be established because the firewalls on the connection path are not open for the required ports.

  • The interface is receiving new parameters.

  • The configured connection is being removed by a TDISCON instruction.

W#16#80C5

The connection partner refuses to establish the connection, has terminated the connection or actively ended it.

W#16#80C6

Network error: The connection partner cannot be reached.

W#16#80C7

Execution timeout.

W#16#80C8

Value at the ID parameter is already used by a connection that was created by the user program. The connection uses the identical ID, but different connection settings at the CONNECT parameter.

W#16#80C9

Validation of the connection partner failed. The connection partner that wants to establish the connection does not match the defined partner at the CONNECT parameter.

W#16#80CE

The IP address of the local interface is 0.0.0.0.

W#16#80D0

With TCP and active connection endpoint: The remote_qdn parameter is an empty string. A connection cannot be established.

W#16#80D1

The remote_qdn parameter is not a fully qualified domain name. The period at the end might be missing.

W#16#80D2

No DNS server address is configured.

W#16#80D3

The fully qualified domain name cannot be resolved. Possible causes:

  • The DNS server is not reachable, for example, because it has been shut down or the remote port is not reachable.

  • An error occurred during communication with the DNS server.

  • The DNS server returned a valid DNS answer, but the answer contained no IPv4 address.

W#16#80E0

Unsuitable or poor message was received.

W#16#80E1

Error during handshake. Possible causes:

  • Aborted by the user

  • Security not high enough

  • Renewed negotiation is not supported.

  • SSL/TLS version is not supported.

  • Validation of the host name failed.

W#16#80E2

Certificate is not supported or invalid. Possible cause: The time-of-day of the module concerned is not set or the module is not synchronized.

Example: The default setting for the date of the module is 1/1/2012 and it was not set during commissioning. The validity period of the certificate starts on 20 August 2016 and ends on 20 August 2024. In this case, the date of the module is outside the valid period of the certificate; the certificate is invalid for the module.

W#16#80E3

Certificate was discarded.

W#16#80E4

No valid certification authority found.

W#16#80E5

Certificate expired.

W#16#80E6

Integrity errors in the Transport Layer Security Protocol.

W#16#80E7

Not supported extension in X.509-V3 certificate.

W#16#80E9

TLS server without server certificate is not supported.

W#16#80EA

DTLS (UDP) protocol is not supported.

W#16#80EB

A client cannot request a client certificate.

W#16#80EC

The server cannot perform validation based on subjectAlternateName (only clients can do this).

W#16#80ED

TLSServerCertRef_m-ID is invalid.

errorTusend

Hexadezimalwert Statusmeldung

Beschreibung

W#16#0000

Send job completed without error.

W#16#7000

No job processing is active.

W#16#7001

Start of job processing, data being sent.

Note: During this processing phase, the operating system accesses the data in the DATA send area.

W#16#7002

Intermediate call (REQ irrelevant), job is being processed.

Note: During this processing phase, the operating system accesses the data in the DATA send area.

Hexadezimalwert Fehler

Beschreibung

W#16#8085

The LEN parameter has the value "0" or is greater than the highest valid value.

W#16#8086

The ID parameter is outside the valid range.

W#16#8088

The LEN parameter is greater than the memory area specified in DATA.

W#16#8089

The ADDR parameter does not point to a data block with the structure TADDR_Param or TADDR_SEND_QDN.

W#16#80A1

Communication error:

  • The specified connection between user program and communication layer of the operating system has not yet been established.

  • The specified connection between the user program and the communication layer of the operating system is currently being terminated. Transfer over this connection is not possible.

  • The interface is being re-initialized.

W#16#80B1

You changed the DATA parameter before the current job finished.

W#16#80A4

IP address (at the ADDR parameter) of the remote connection endpoint is invalid, or it matches the IP address of the local partner.

W#16#80B3

  • The protocol variant (connection_type parameter in the connection description) is not set to UDP. Please use TSEND.

  • Parameter ADDR: Invalid settings for port number.

W#16#80B7

The length of the structure referenced by the ADDR parameter is not 8 bytes.

W#16#80C3

  • A block with this ID is already being processed in a different priority class.

  • Internal lack of resources.
