This procedure is only necessary when using the SIMATIC Manager (STEP 7 ≤ V5), if a different block number was assigned to one of the following used embedded block numbers.
|
Symbolic name |
Standard numbering |
Origin |
|---|---|---|
|
ibaREQ_UDPact |
FB145 |
iba AG, ibaS7Lib |
|
TCON |
FB65 |
Siemens, Standard Library |
|
TDISCON |
FB66 |
Siemens, Standard Library |
|
TUSEND |
FB67 |
Siemens, Standard Library |
|
AG_SEND |
FC5 |
Siemens, SIMATIC_NET_CP |
|
AG_LSEND |
FC50 |
Siemens, SIMATIC_NET_CP |
|
ibaUDT_UDPact |
UDT145 |
iba AG, ibaS7Lib |
-

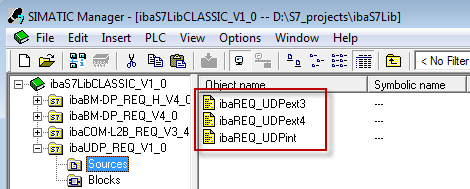

Copy the following block sources from the iba S7 library to the source folder of your STEP 7 project.
-

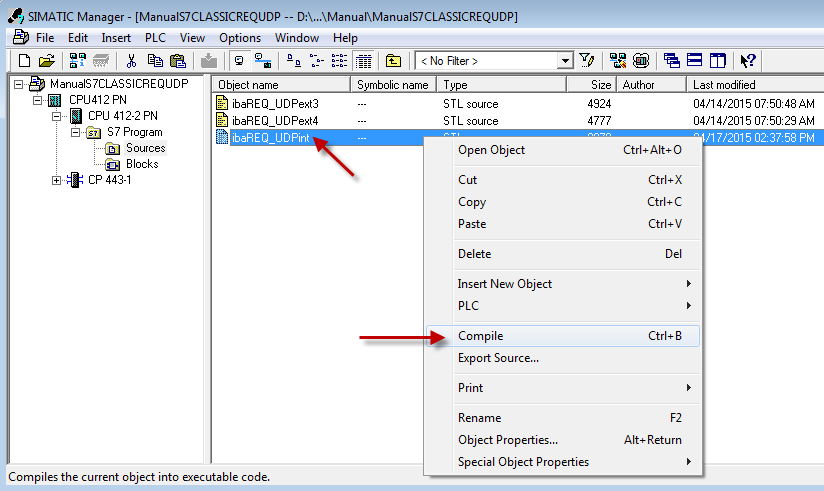

Make a new translation for all sources of the function blocks you use.
Note |
|
|---|---|
 |
It is absolutely essential that the symbolic designation of the subordinate blocks is not modified (see table above). |
