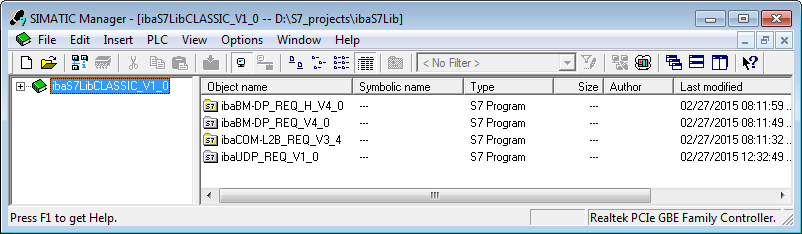

The iba S7 library for SIMATIC Manager ("ibaS7LibCLASSIC_Vx_y") is suitable for SIMATIC Manager V5.5 or higher. It contains the Request blocks described in the manual, which are required for the use of ibaPDA-Request-S7-UDP .
You find the iba S7 library as an archived file on the data storage medium "iba Software
& Manuals" in the following directory:
\04_Libraries_and_Examples\10_Libraries\01_SIMATIC_S7\
The following components are included:
|
iba connection |
Block name |
Block no. |
Note |
|---|---|---|---|
|
ibaBM-DP ibaBM-DPM-S |
ibaDP_Req |
FC122 |
|
|
ibaDP_DB_PDA |
DB10 |
||
|
ibaDP_DB_work |
DB25 |
||
|
ibaBM-DP ibaBM-DPM-SRedundancy mode |
ibaDP_Req_H |
FC123 |
For S7-400H |
|
ibaDP_DB_PDA |
DB10 |
||
|
ibaDP_DB_work |
DB25 |
||
|
ibaBM-PN |
ibaREQ_M |
FB140 |
|
|
ibaREQ_PN |
FB141 |
||
|
ibaREQ_PNdev |
FB150 |
||
|
ibaREQ_DB |
DB15 |
||
|
ibaUDT_UDPact |
UDT145 |
||
|
ibaCom-L2B |
ibaL2B_Init |
FC111 |
formerly FC23 and FC101 |
|
ibaL2B_Req |
FC112 |
formerly FC22 and FC100 |
|
|
ibaL2B_Req_CP |
FC113 |
formerly FC26 and FC102only necessary when using a CP342-5 instead of the FC112 |
|
|
ibaL2B_DB_work |
DB22 |
||
|
ibaL2B_DB_Struct |
UDT22 |
||
|
ibaL2B_CP_SNDRCV |
DB10 |
only necessary when using a CP342-5 |
|
|
ibaPDA-Interface-S7-TCP/UDP |
ibaREQ_M |
FB140 |
|
|
ibaREQ_UDPact |
FB145 |
||
|
ibaREQ_UDPint |
FB146 |
||
|
ibaREQ_UDPext3 |
FB147 |
||
|
ibaREQ_UDPext4 |
FB148 |
||
|
ibaREQ_DB |
DB15 |
||
|
ibaUDT_UDPact |
UDT145 |
