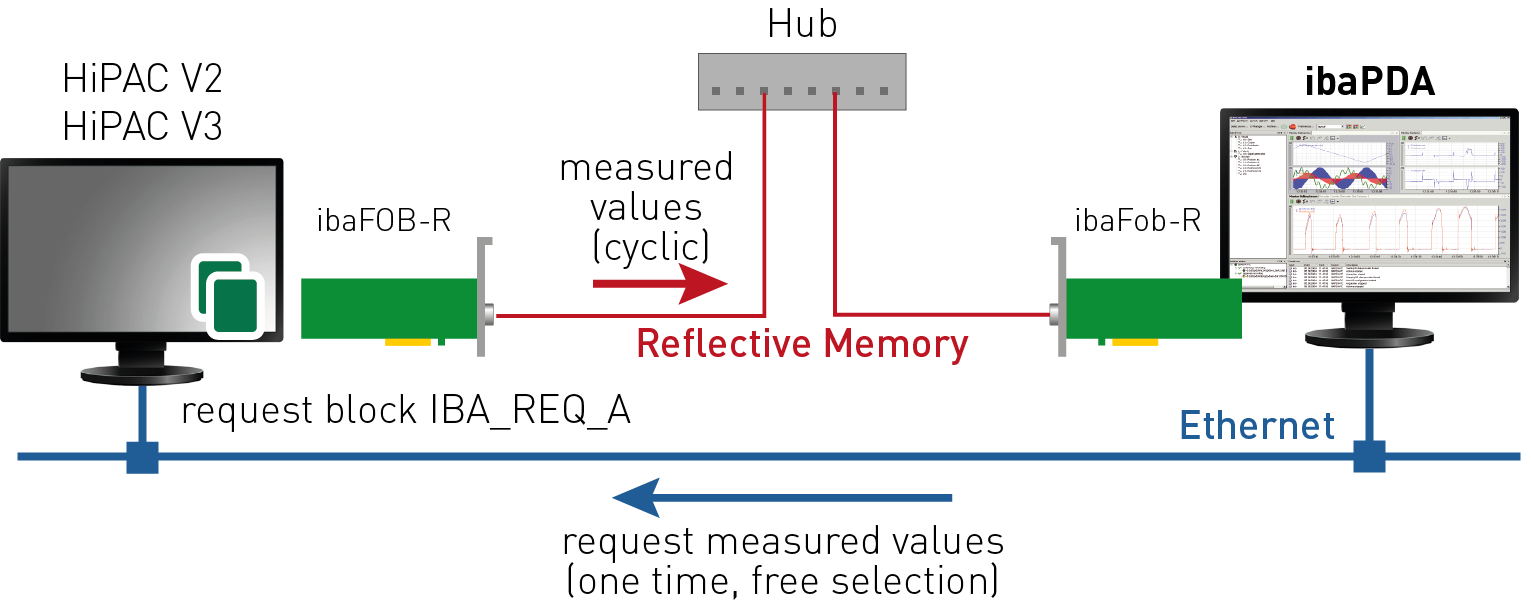

The measurement data is transmitted via Reflective Memory either directly to ibaPDA or via a Reflective Memory hub.

You need the following connections:

• Ethernet connection between ibaPDA and the HiPAC PLC

• FO link via Reflective Memory card in the ibaPDA computer and in the HiPAC computer (e.g. ibaFOB-R or PCIe-5565PIORC from ABACO)

An additional prerequisite is the the ibaHiPACRequest library in the HiPAC controller.
