Request blocks

The request blocks are used to initialize and control communication between the HiPAC controller and ibaPDA.

A request block set always consists of a management block and a signal data block. The same signal data blocks are used for the connection via UDP and Reflective Memory. The blocks are part of the ibaHiPACRequest library.

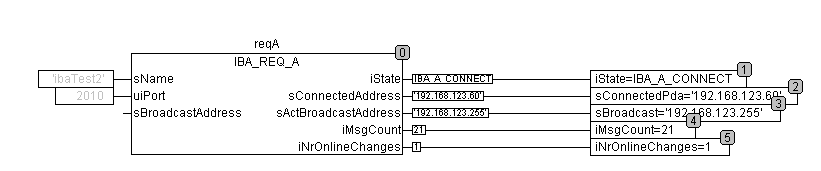

Management block IBA_REQ_A

Name	Type	In/Out	Description
sName	STRING(20)	IN	Name of the function block The same name must be used for the corresponding IBA_REQ_B function block. The name must be unique across all HiPAC CPUs that are connected to the same ibaPDA.
uiPort	UINT	IN	Port number of the TCP socket for listening
sBroadcastAddress	STRING(20)	IN	Optional IP address to which the function block sends the broadcast telegrams If this input parameter remains empty, the block automatically attempts to determine the address by calling up its own IP address and assuming a subnet mask of 255.255.255.0.
iState	IBA_STATE_A	OUT	Status of the function block
sConnectedAddress	STRING(20)	OUT	IP address of the connected ibaPDA system
sActBroadcastAddress	STRING(20)	OUT	IP address used for broadcast telegrams
iMsgCount	INT	OUT	Telegram counter for telegrams sent to ibaPDA
iNrOnlineChanges	INT	OUT	Number of online changes detected by the function block

The block IBA_REQ_A can assume the following states (IBA_STATE_A):

Status	Description
IBA_REQ_A_INIT	Initial state before the block has registered with its name
IBA_REQ_A_OPEN	Block attempts to open a socket to listen to port uiport.
IBA_REQ_A_WAIT_FOR_CONNECT	Socket for listening is opened and block waits for incoming connection from ibaPDA.
IBA_REQ_A_CONNECT	Connection with ibaPDA is established and telegrams are exchanged.

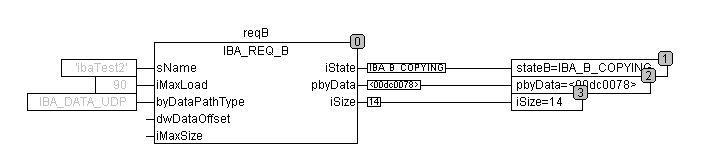

Signal data block IBA_REQ_B

Name	Type	In/Out	Description
sName	STRING(20)	IN	Name of the function block The same name must be used for the corresponding IBA_REQ_A function block.
iMaxLoad		INTIN	Maximum CPU load in % If the CPU load exceeds this value, the copying process is stopped.
byDataPathType	IBA_DATA_PATH_TYPE	IN	Type of the data path used. There are 2 possible options: IBA_DATA_RM: Reflective Memory. The offset and buffer size that are reserved on the reflective memory card for request to this CPU are automatically determined by functions of the RFMPDA library. IBA_DATA_UDP: UDP connection. The destination address and port number are automatically read out by the ibaPDA instance, which is connected to the A module to start the acquisition.
dwDataOffset	DWORD	IN	Optional additional offset within the data path buffer. This is only needed if several B blocks on the same CPU write to the same data path.
iMaxSize	INT	IN	Maximum size that the block may write on the data path Set to 0 if the entire data path may be used. If several B blocks on the same CPU write to the same data path, then the maximum permissible size is entered here that the block may occupy on the data path.
iState	IBA_STATE_B	OUT	Status of the function block
pbyData	POINTER TO BYTE	OUT	Pointer to the data buffer
iSize	INT	OUT	Current size of the data in the buffer. Valid if iState = IBA_B_COPYING.

The signal data block can assume the following states (IBA_STATE_B):

Status	Description
IBA_B_INIT	Initial state. Search for the block of the same name IBA_REQ_A.
IBA_B_NO_DATA_PATH	Connected to the A block, but no data path available.
IBA_B_READY	Connected to the A block and data path found. The variable list is empty.
IBA_B_VALIDATE	A new variable list is validated.
IBA_B_COPYING	Copy data for the variable list.
IBA_B_OVERLOAD	An overload of the controller was detected during validation or copying. Copying has been stopped.
IBA_B_ONLINECHANGE	An online change has occurred; wait for the A block to respond.
