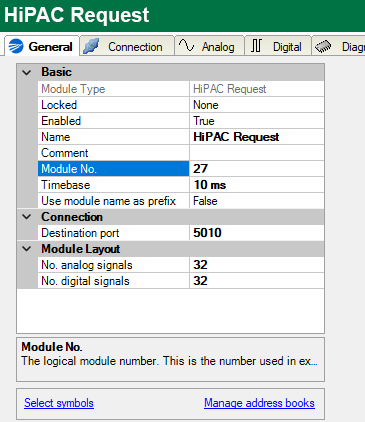

You can configure the following module settings in the General tab.
Basic settings
Module Type (information only)
Indicates the type of the current module.
Locked
You can lock a module to avoid unintentional or unauthorized changing of the module settings.
Enabled
Enable the module to record signals.
Name
You can enter a name for the module here.
Comment
You can enter a comment or description of the module here. This will be displayed as a tooltip in the signal tree.
Module No.
This internal reference number of the module determines the order of the modules in the signal tree of ibaPDA client and ibaAnalyzer.
Timebase
All signals of the module are sampled on this timebase.
Use module name as prefix
This option puts the module name in front of the signal names.
Module Layout
No. analog signals
Definition of the number of analog signals for this module (max. 1024)
No. digital signals
Definition of the number of digital signals for this module (max. 1024)
Connection
Destination port
Port used by the controller to send data via this module or this connection to ibaPDA. Possible values: 5010 - 5017, default value = 5010
“Select symbols” and “Manage address books” link
For information on the signal configuration, see Selecting symbols.
If you click on the Manage address books link, the Address books node opens in the general settings of ibaPDA.
Other documentation |
|
|---|---|
 |
Further information on the configuration of address books can be found in the ibaPDA documentation. |
