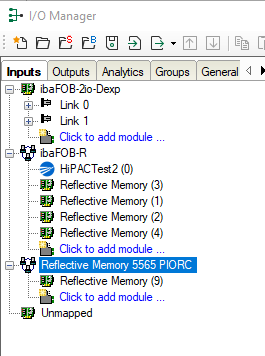

The configuration is done in the I/O Manager of ibaPDA. First set up the connection from ibaPDA to the HiPAC controller via the ibaFOB-R interface or Reflective Memory interface.

The interface is only visible if the Reflective Memory license is enabled and a Reflective Memory interface card is installed in the PC.

Once the connection has been set up, add a HiPAC request module accordingly, see chapter Adding a module.

The configuration of the signals and selection in the symbol browser is described in chapter Selecting symbols.
