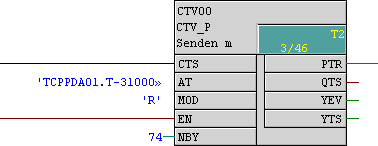

The connection setup is done via the send block CTV or CTV_P. All communication parameter will be encrypted in the address connector AT.

Connection

Meaning

Description

CTS

HW connection

Connected to CP51M1

AT

Address

See below

MOD

Channel mode

R = Refresh (recommended)H = Handshake

EN

Enable

Transmit trigger

NBY

No of Bytes

Telegram buffer length

PTR

Buffer indicator

Indicator on telegram buffer

QTS

Block status 1

1 = OK

YEV

Block status 2

Coupling status: 0 = OK

YTS

Block status 3

Additional information
Structure address connector AT

'aaaaaaaa.b-ccccc.dddddddddddd-eeeee' with

aaaaaa:

unique channel name, max. 8 characters

b:

'T' stands for TCP, 'U' stands for UDP

ccccc:

local port number, freely selectable, unique, 5 digit with leading zeros

dddddddddddd:

remote IP address, decimal representation but without full stop, with leading zeros

eeeee:

remote port number, has to match ibaPDA interface, 5 digit with leading zeros

Example: "TCPPDA01.T-31000.192168080203-04171"

TCPPDA01

Channel name

T-

TCP connection

31000

local port number

192168080203

Remote IP address 192.168.80.203

04171

remote port number 4171

Example: "UDPPDA014.U-31003.192168080203-04171"

UDPPDA01

Channel name

U-

UDP connection

31003

local port number

192168080203

Remote IP address 192.168.80.203

04171

remote port number 4171
