Procedure

1. Click on the blue link Click to add module located under each data interface in the Inputs or Outputs tab.

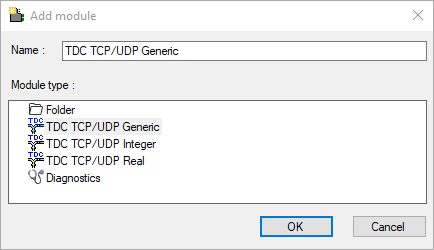

2. Select the desired module type in the dialog box and assign a name via the input field if required.

3. Confirm the selection with <OK>.

Module types

You can add the following module types to the interface:

• TDC TCP/UDP Generic

• TDC TCP/UDP Integer

• TDC TCP/UDP Real

Note
	When a TCP/IP or UDP connection to SIMATIC TDC is established, right-click on the interface and choose Autodetect. Then the modules are automatically created for all available connections
