SIMATIC TDC is the active partner as well.

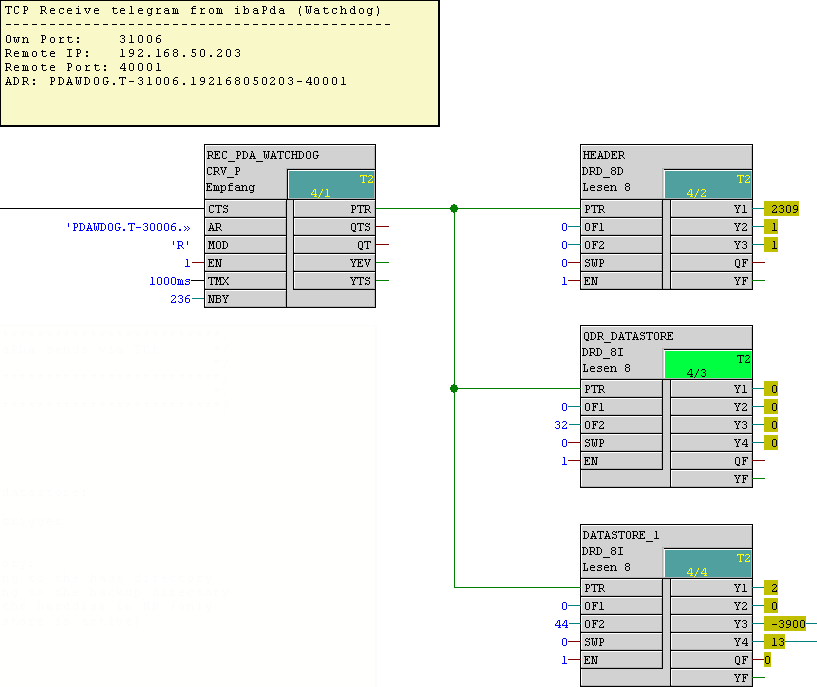

From the telegram buffer, the header (offset 0), the QDR_DATASTORE information (Offset 32) and the DATASTORE_1 information (Offset 44) will be read.
If needed further DATASTORE reading blocks can be implemented.
Other documentation |
|
|---|---|
 |
You will find the content and structure of the ibaPDA watchdog telegram in the ibaPDA manual. |
