Example |
ibaPDA Project |
SIMATIC TDC Project |
|---|---|---|
|
Project |
ibaPDA_TDC_TCP-UDP_Vxx.zip |
TDC_TCP-UDP_Vxx.zip |
Hardware
|
Slot |
Name |
Type |
|
|---|---|---|---|
|
1 |
D01P01 |
CPU551 |
CPU |
|
15 |
D1500C |
CP51M1 |
Communication processor |

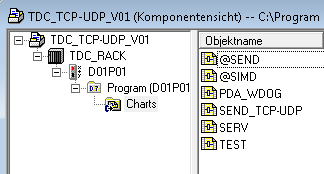

Software
-
The demo signals are created in the plan TEST.
-
The data is sent to ibaPDA in the plan SEND_TCP-UDP.
-
The ibaPDA watchdog telegram is received in the plan PDA_WDOG.
Communication parameter
-
Remote IP address (ibaPDA PC): 192.168.80.203
-
Remote Port (ibaPDA): 4171
-
Telegram overview:
|
Local port in TDC |
Protocol |
ibaPDA Module type |
Modul index |
|---|---|---|---|
|
30000 |
TCP/IP |
Integer |
0 |
|
30001 |
TCP/IP |
Real |
100 |
|
30002 |
TCP/IP |
Generic |
200 |
|
30003 |
UDP |
Integer |
1 |
|
30004 |
UDP |
Real |
101 |
|
30005 |
UDP |
Generic |
201 |
|
30006 |
TCP/IP |
Watchdog |
- |
