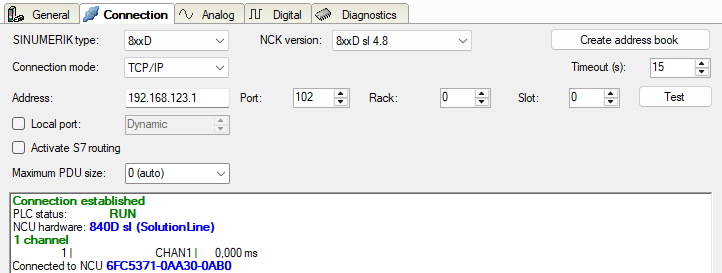

This mode activates a connection via the standard network interface of the computer.

SINUMERIK type

Select the device type. All controllers that are not SINUMERIK One are grouped as 8xxD.

NCK version

Select the version of the NCK software. You can find it on the flash drive in the SINUMERIK controller, also referred to as the firmware version of the NCU. The version specifies the symbols in the symbol browser that are documented to work with the selected firmware. You can select the version via the drop-down list.

How to determine the NCK version is described in chapter NCK version.

For SINUMERIK One, there is only one option currently.

Connection mode

Selection of the TCP/IP connection mode

Timeout

Specify a value for the timeout in seconds for establishing the connection and for read access. If the time set here is exceeded, ibaPDA declares the controller as not accessible or not responsive.

Address

IP address of the NCK

Port

Number of the destination port on the NCK

Rack

Rack number of the NCK (default: 0)

Slot

Slot number of the NCK in the rack

Local port

By default, Windows assigns the local TCP port for S7 connections dynamically. Here, you can specify a static port if required.

Activate S7 routing

Activate this option if the NCK and the ibaPDA computer are not in the same network, but only communicate over a gateway that supports S7 routing. Such a gateway can be e.g. an IE/PB link, over which the NCK can be reached without an Ethernet connection.

Two additional input fields appear:

  • Address of device acting as gateway: Enter the IP address of the gateway.

  • S7 subnet ID of target net: Enter subnet ID from STEP 7 NetPro or TIA Portal.

For more information on S7 routing, see S7 routing.

Maximum PDU size

You can limit the PDU (packet data unit) to a maximum size. You can select a value from the drop-down list or enter a value. If the value "0" (default setting) is set, ibaPDA automatically identifies the PDU size by the network protocol.

<Create address book>

You can use this button to create an address book containing GUD variables and firmware symbols that have been configured directly on the connected controller. In addition to the NC variables and drive variables, the GUD variables are then also available in the symbol browser.

<Test>

ibaPDA tests the connection to the CPU and displays available diagnostic data. E.g. if a CPU was connected but not the NCK, the MLFB number of the CPU that was found is displayed if possible.
