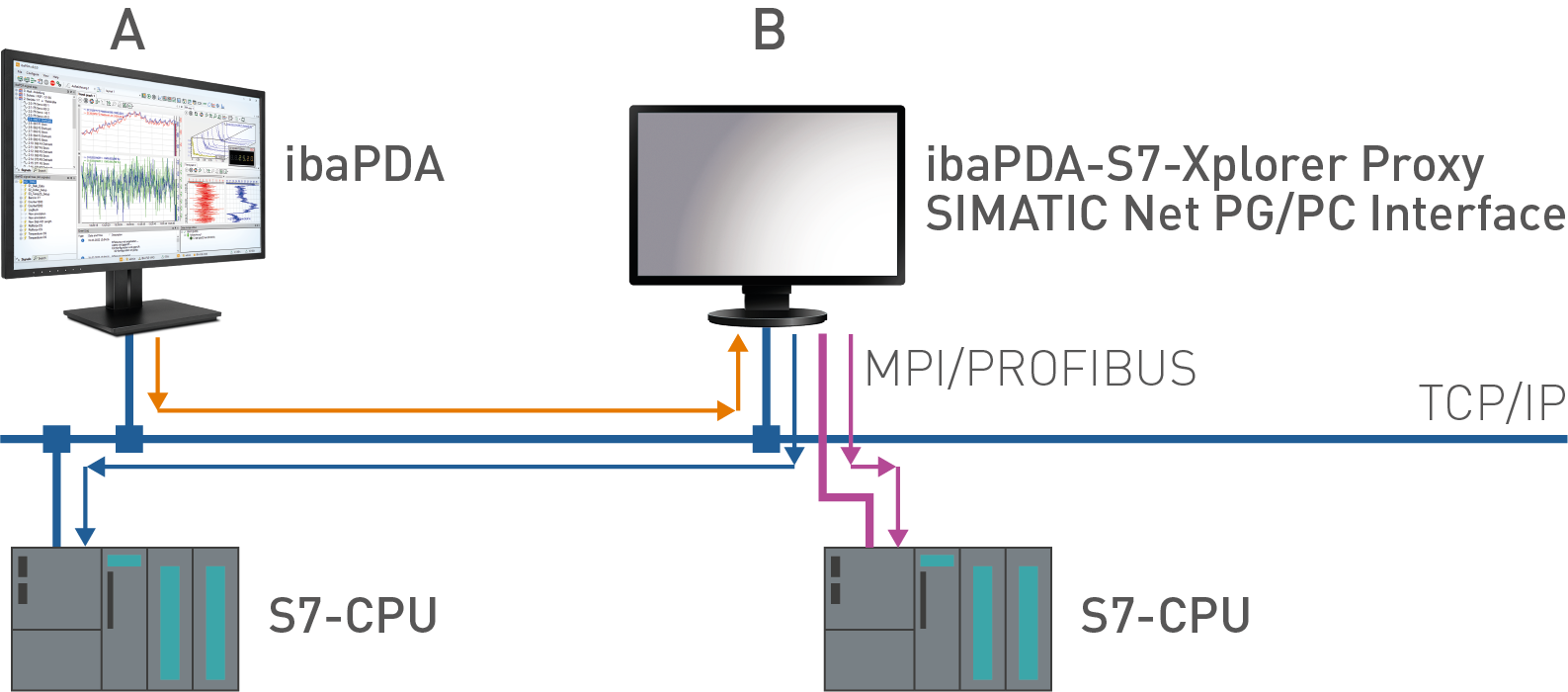

You can also use the ibaPDA-S7-Xplorer Proxy when STEP 7 or SIMATIC Net is not installed on the ibaPDA computer (computer A), but the CPU still must be accessed via an S7-Xplorer module with connection mode PC/CP.

For this purpose, install ant start he ibaPDA-S7-Xplorer Proxy on the computer with the STEP 7/SIMATIC NET installation (computer B).

Unlike the configuration with S7-PLCSIM, you must set a real interface (e.g. the network interface card) as access point for applications. Install the access point on computer B.

S7-CPU can be accessed via all installed access points.
