Module S7-200

Select this module for connecting a SIMATIC S7-200.

ibaPDA supports the following controllers, connection modes and selection methods:

Controller	Connection mode and signal selection
	TCP/IP			PC/CP			TCP/IP S7-1x00
	ABS	SYM	CFC	ABS	SYM	CFC	ABS	SYM	CFC
S7-200	X	-	-	X	-	-	-	-	-

Explanation: ABSolute address, SYMbolic, CFC connector

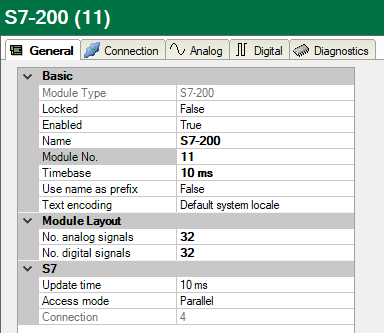

For more information on the module settings see General module settings.

Connection configuration

Select the desired connection mode in the Connection tab:

Note

If you access an S7-200, the programming device access is always used internally. However, this can only be used once simultaneously. This means that if you access the S7-200 that way, STEP 7-Micro/WIN cannot access at the same time. To avoid this, you can use a projected connection in ibaPDA.
