This module establishes a connection via the standard network interface of the computer or an additional interface card to various S7 controllers installed in SINUMERIK devices.

ibaPDA supports the following controllers, connection modes and selection methods:

SINUMERIK

Connection mode and signal selection

TCP/IP

PC/CP

TCP/IP S7-1x00

ABS

SYM

CFC

ABS

SYM

CFC

ABS

SYM

CFC

808D

X

X

X

X

X

X

-

-

-

828D

X

X

X

X

X

X

-

-

-

840D

X

X

X

X

X

X

-

-

-

ONE

X

-

-

-

-

-

-

X

-

Explanation: ABSolute address, SYMbolic, CFC connector

ibaPDA supports the following operand types:

Selection via

Analog

Digital

808D 828D 840D

EB, AB, MB, PEB, DBB EW, AW, MW, PEW, DBW ED, AD, MD, PED, DBD T, Z

E, A, M, DBX

ONE

EB, AB, MB, DBB EW, AW, MW, DBW ED, AD, MD, DBD

E, A, M, DBX

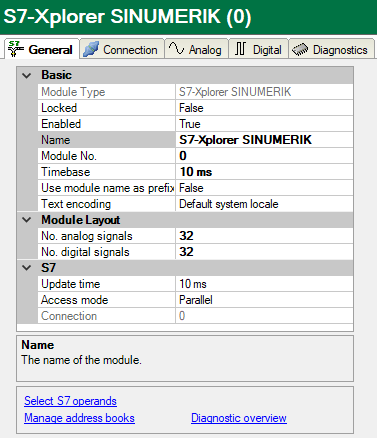

For more information on the module settings see General module settings.

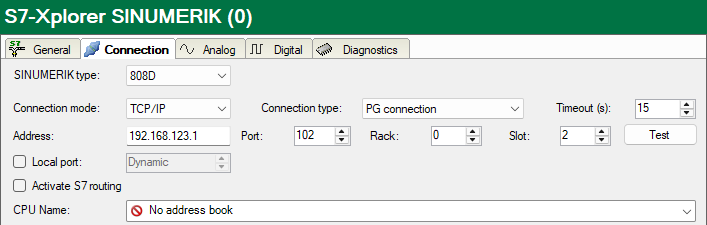

Connection configuration

Select the SINUMERIK type first.

SINUMERIK type

Select the used SINUMERIK type. ibaPDA automatically sets the correct slot of the S7 controller. Depending on the SINUMERIK type, different connection modes are available.

Configure the other connection settings of the S7-Xplorer SINUMERIK module in the same way as the connection for an S7-Xplorer module:

Connection mode TCP/IP Connection mode PC/CP Connection mode TCP/IP S7-1x00
