Module S5 (LAN adapter)

This module establishes the connection to an AS511 interface of a SIMATIC S5 via the standard network interface of the computer or an additional network interface card. For this purpose, an additional interface converter for converting the signals (from AS511 to TCP/IP) is needed.

The following devices are tested and approved:

ACCON-S5-LAN^{, Deltalogic Article no. 11800}
IBH Link S5++, IBHsoftec Article no. 20284

ibaPDA supports the following controllers, connection modes and selection methods:

Controller	Connection mode and signal selection
	TCP/IP			PC/CP			TCP/IP S7-1x00
	ABS	SYM	CFC	ABS	SYM	CFC	ABS	SYM	CFC
S5	X	-	-	-	-	-	-	-	-

Explanation: ABSolute address, SYMbolic, CFC connector

The module does not support any timers, counters or S markers.

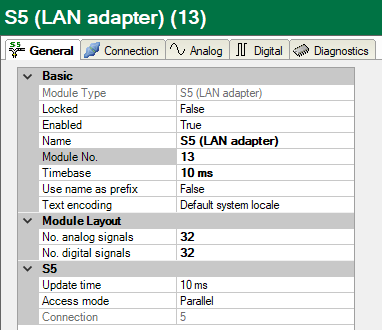

For more information on the module settings see General module settings.

Connection configuration

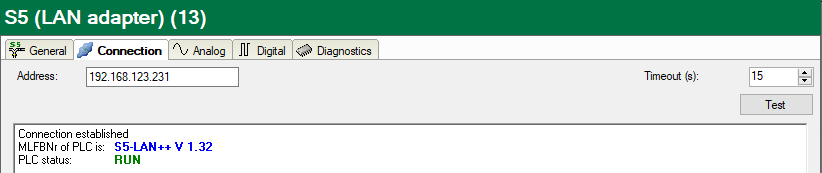

Enter the IP address of the S5-LAN-adapter on the Connection tab in the Address field and click <Test>.

Note

As the AS511 interface is operated with only 9600 Baud, the data throughput that can be reached is correspondingly low.

Measured update times with a CPU948:

32 bytes: 220 ms
64 bytes: 260 ms
96 bytes: 290 ms
128 bytes: 330 ms
160 bytes: 450 ms
