This mode activates a connection via the standard network interface of the computer.

Connection mode

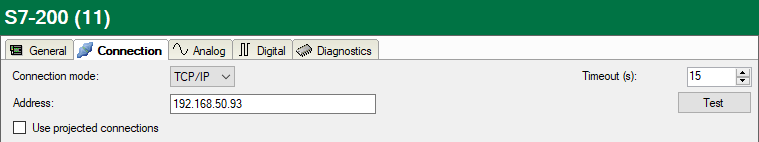

Selection of the TCP/IP connection mode

Timeout

Specify a value for the timeout in seconds for establishing the connection and for read access. If the time set here is exceeded, ibaPDA declares the controller as not accessible or not responsive.

Address

IP address of the controller

<Test>

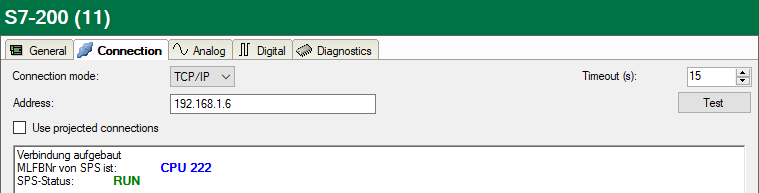

ibaPDA tests the connection to the CPU and displays available diagnostic data.

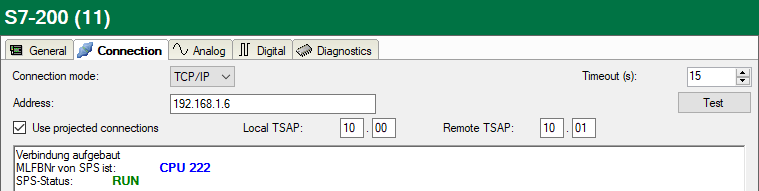

When you enable the Use projected connections option, you have to enter Local TSAP and Remote TSAP as well.

Local TSAP and remote TSAP

The values are described in the connection configuration in STEP 7-Micro/WIN (see Configuration of S7-200).
