Click on the blue link Click to add module located under each data interface in the Inputs or Outputs tab.
-

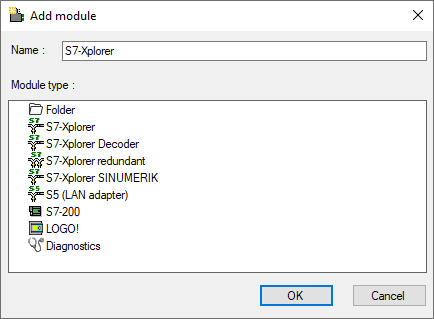

Select the desired module type in the dialog box and assign a name via the input field if required.
-
Confirm the selection with <OK>.
|
Module name |
Description |
|---|---|
|
S7-Xplorer |
Connection to SIMATIC S7-300, S7-400, S7-1200 and S7-1500 |
|
S7-Xplorer Decoder |
Acquisition of digital signals from BYTE, WORD and DWORD variables |
|
S7-Xplorer redundant |
redundant connection to SIMATIC S7-300, S7-400, S7-400H, S7-1200 and S7-1500 via the standard network interface |
|
S7-Xplorer SIUMERIK |
Preconfigured S7-Xplorer connection to integrated S7 controller of SINUMERIK |
|
S5 (LAN adapter) |
Connection to SIMATIC S5 via AS511 (adapter required) |
|
S7-200 |
Connection to SIMATIC S7-200 |
|
LOGO! |
Connection to SIMATIC LOGO! |
|
Diagnostics |
allows the recording of connection related diagnostic data |
