The following system requirements are necessary for the use of the Reflective Memory data interface:

• ibaPDA v8.8.1 or higher for the ibaFOB-R support

• License for ibaPDA-Interface-Reflective-Memory

• The following board types are supported:

• • from ABACO or GE Intelligent Platforms

    Windows 64 bit systems (x64): PCIE-5565PIORC, PCI-5565PIORC, VMIC-5565, VMIC-5576

    Windows 32 bit systems (x86): PCIE-5565PIORC, PCI-5565PIORC VMIC-5565, VMIC-5576, VMIC-5579, VMIC-5587, VMIC-5588

  • from iba AG

    Windows 64 bit systems (x64): ibaFOB-R

    Windows 32 bit systems (x86): ibaFOB-R

For further requirements for the used computer hardware and the supported operating systems, please refer to the ibaPDA documentation.

License information

Order no.	Product name	Description
31.001220	ibaPDA-Interface-Reflective-Memory	Extension license for an ibaPDA system adding a data interface for connecting to a Reflective Memory node or network

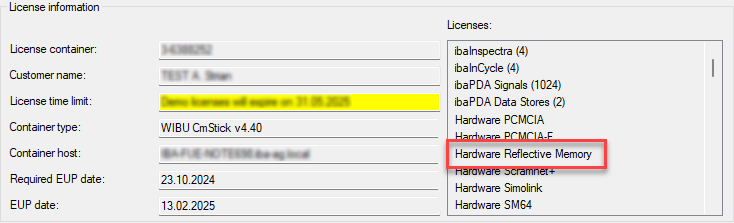

If the Reflective Memory interface is not displayed in the signal tree, you can either check in ibaPDA under General - Settings - License info in the I/O Manager or in the ibaPDA service status application, whether your license Hardware Reflective Memory has been properly recognized.
