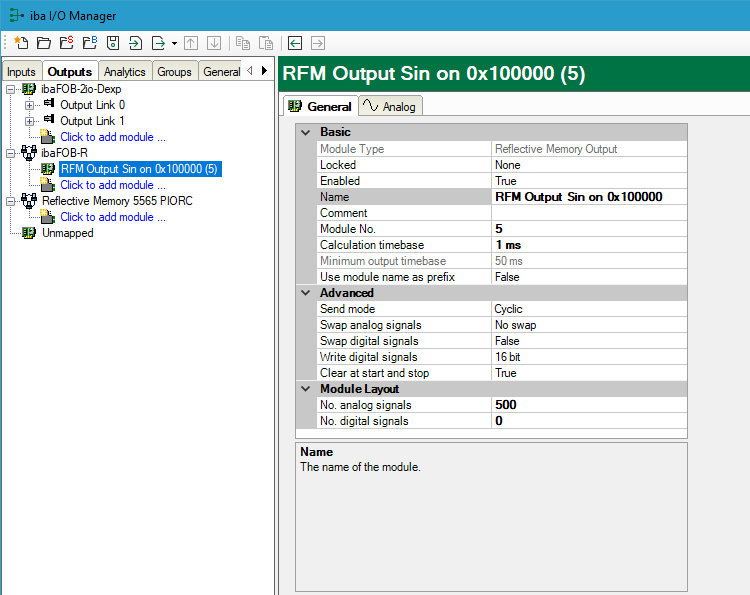

In order to configure a module, mark it in the tree, select the General tab and make the required settings in the dialog.

The parameters are similar to those of the input modules.

For basic settings see Reflective Memory – General and Reflective Memory – General tab

Calculation timebase

The timebase used for calculating output values. You can set this timebase independently of the general timebase and the timebase of the input modules. The sending of the output values is done with low priority and can be delayed and superseded by data acquisition tasks which always have higher priority since this is the core functionality of ibaPDA. The attempted minimum output cycle time is independent from the calculation timebase. The minimum output cycle time is fastest 50 ms or the least common multiple of all input timebases.

Check the current minimum output cycle time of your system in the I/O Manager in the General tab, in the Module overview node.
