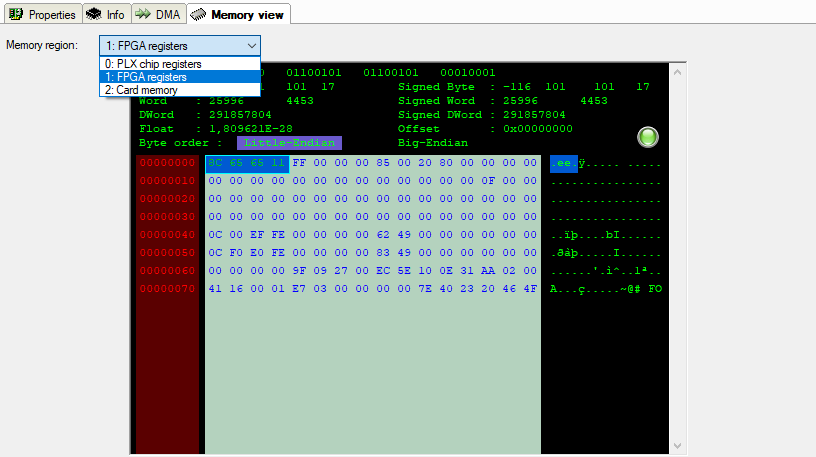

This view provides very detailed information about the memory use in the different base addresses of the Reflective Memory to the service staff.

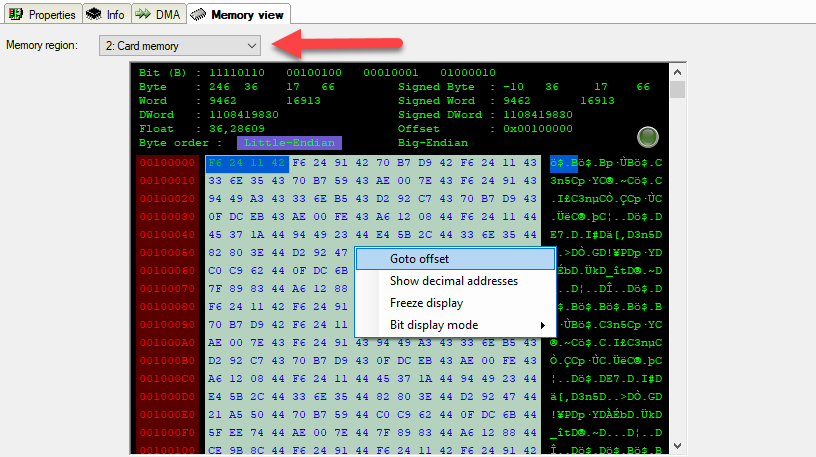

Usually there is no need to access this dialog. The blinking green light indicates a running system in which the visualization is refreshed. The offset addresses equal the address entries in the signal tables of the data modules only when the Card memory is selected as indicated by the red arrow above.

You can identify the formatting of the incoming data (Swap mode). A right mouse click opens a shortcut menu. It is possible to switch the address mode from hexadecimal to decimal (or vice versa) and to freeze the display with the shortcuts.
