The following system requirements are necessary when using the MELSEC-Xplorer data interface:
-
ibaPDA v7.1.7 or higher
-
Base license for ibaPDA + license for ibaPDA-Interface-PLC-Xplorer or ibaPDA-Interface-MELSEC-Xplorer
-
With more than 16 connections you need additional one-step-up-Interface-MELSEC-Xplorer licences for each additional 16 connections.
Note |
|
|---|---|
 |
The ibaPDA-Interface-PLC-Xplorer license contains, among others, the license for this interface. |
ibaPDA supports the following MELSEC controller families:
-
-
MELSEC-A
-
MELSEC FX3U
-
MELSEC-Q
-
MELSEC-L
-
MELSEC iQ-R
-
MELSEC iQ-F
-
For further requirements for the used computer hardware and the supported operating systems, refer to the ibaPDA documentation.
License information
|
Order no. |
Product name |
Description |
|---|---|---|
|
31.001042 |
ibaPDA-Interface-PLC-Xplorer |
Extension license for an ibaPDA system. All additional Xplorer-data interfaces are added. (For complete specifications visit www.iba-ag.com) |
|
31.000008 |
ibaPDA-Interface-MELSEC-Xplorer |
Extension license for an ibaPDA system adding the data interface MELSEC-Xplorer (interface to MELSEC controllers) |
|
31.100008 |
one-step-up-Interface-MELSEC-Xplorer |
Extension license for 16 further MELSEC-Xplorer connections (max. 14 extension licenses) |
Note |
|
|---|---|
|

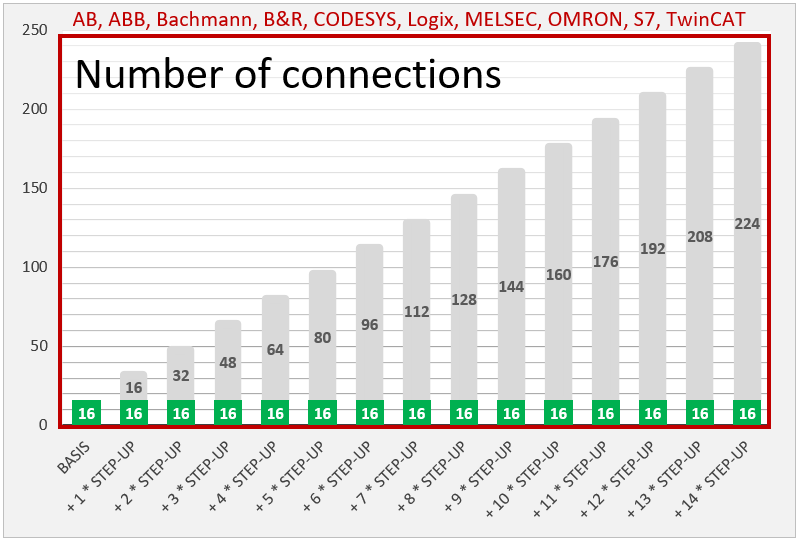

To use more than 16 data connections per interface, you can purchase the one-step-up-… extension licenses separately for each interface. Up to 16 further connections to PLCs can be established on each one-step-up-license. Up to 240 connections can be configured and used per data interface with the multiple purchase or multiple release of these licenses (up to 15 in total).
Consider the limitation of the number of signals by the ibaPDA base license. |
