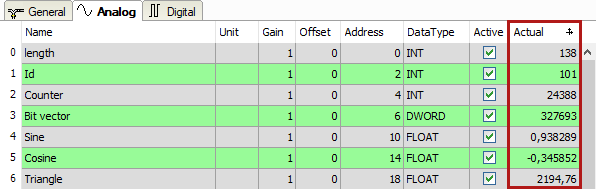

The tables Analog and Digital of the Generic UDP modules show the telegram contents (actual values).

The following errors may occur:

  • No data are displayed:

    • The telegram buffer on the controller side is not filled.

    • The connectors of the send block are connected incorrectly.

  • Incorrect values are displayed:

    • The telegram buffer on the controller side is not filled correctly (offset error).

    • The byte order is set incorrectly, see General module settings.

  • The digital signals are sorted incorrectly:
