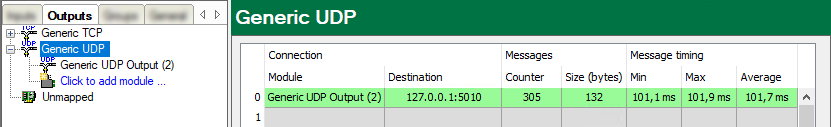

Under the Generic UDP output interface you can find the connection table.
Display variant
When using UDP messages, the sender does not get any confirmation that the data have been received. Hence, ibaPDA cannot indicate faulty connections in the table.
Connection data, telegram data and statistics
-
Module name
-
Destination: IP address and port number of the connection
-
Sent message counter
-
Size of the telegrams sent (user data)
-
Telegram cycle, minimum, maximum and average value.
