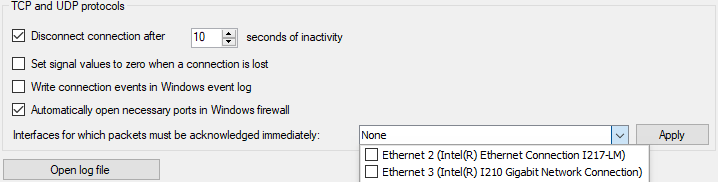

The "Alive timeout" is configured jointly for all TCP/IP and UDP protocols supported by ibaPDA.
Disconnect connection after … seconds of inactivity
Behavior and timeout duration can be specified.
Set signal values to zero when a connection is lost
If this option is disabled, the value read last will be kept.
Write connection events in Windows event log
Current events are logged in Windows.
Automatically open necessary ports in Windows firewall
If this option is enabled, all ports required for the currently licensed interfaces are automatically opened in the firewall by the ibaPDA server service.
If this option is disabled, the required ports can be opened manually in the I/O Manager of the licensed interfaces via <Allow port through firewall>.
Interfaces for which packets must be acknowledged immediately
Selection of required interfaces.
Note |
|
|---|---|
 |
If ibaPDA is the active partner (Client), ibaPDA reestablishes the connection after only a few seconds. Thus, it gives to the passive partner the possibility to send data again. |
