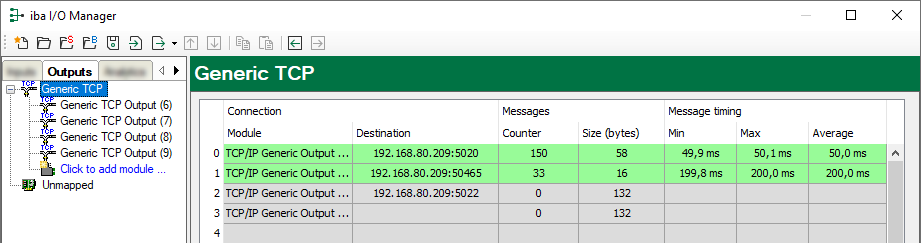

Under the Generic TCP output interface, you can find the connection table.
Display variants
|
Green with destination |
The connection is ok and ibaPDA sends the data. |
|
Gray with destination |
An active module is defined, but there is no receiver with this IP address or port number available for the connection set-up. |
|
Gray without destination |
A passive module is defined, but the receiver has not established a connection yet with the specified port. This is why the partner field is empty. |
Connection data, telegram data and statistics
-
Module name
-
Destination: IP address and port number of the connection
-
Sent message counter
-
Size of the telegrams sent (user data)
-
Telegram cycle, minimum, maximum and average value.
