Add a CAN module for each CAN connection.

Procedure

  1. Click on the blue link Click to add module located under each data interface in the Inputs or Outputs tab.

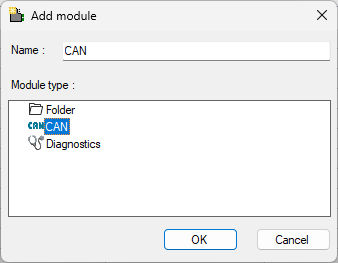

  2. Select the desired module type in the dialog box and assign a name via the input field if required.

  3. Confirm the selection with <OK>.
