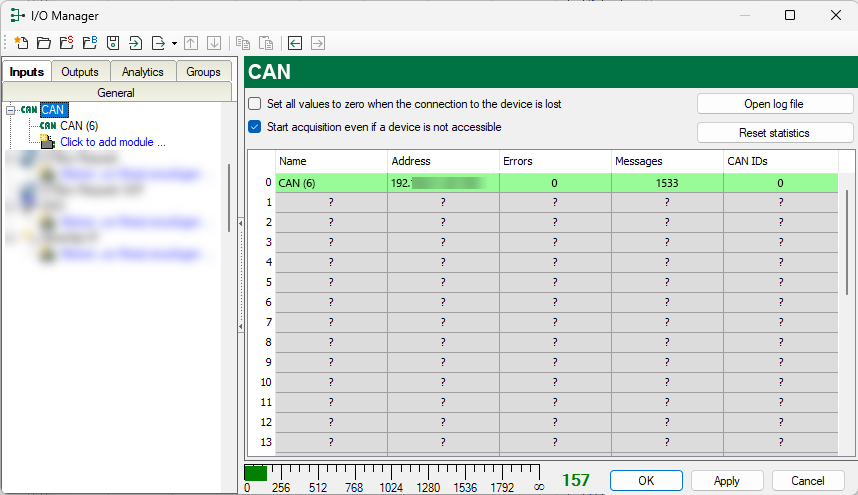

The CAN interface shows all configured connections to CAN gateways in a table. There is one row per connection to a gateway.
The table columns and their meaning:
-
Name: Name of the module
-
Address: IP Address or Host Name of the Gateways
-
Error: Number of communication errors that occurred
Counts up if the connection attempt to a gateway fails or the gateway reports an error to the CAN bus.
-
Messages: Number of the received messages
-
CAN IDs Number of different CAN ID messages received
Additional information is provided by the background color of the table rows:
|
Color |
Meaning |
|---|---|
|
Green |
The connection is OK and the data is read. |
|
Red |
The connection is not active. |
|
Gray |
No connection configured. |
