All relevant CAN gateway settings can be accessed via a web server on the device. Information on opening the web server can be found in the manufacturer's documentation.
-
Log in with the initial access data:
-
User: admin
-
Password: admin
Note
For security reasons, iba strongly recommends to change your password immediately. This change will take effect with the next login attempt.

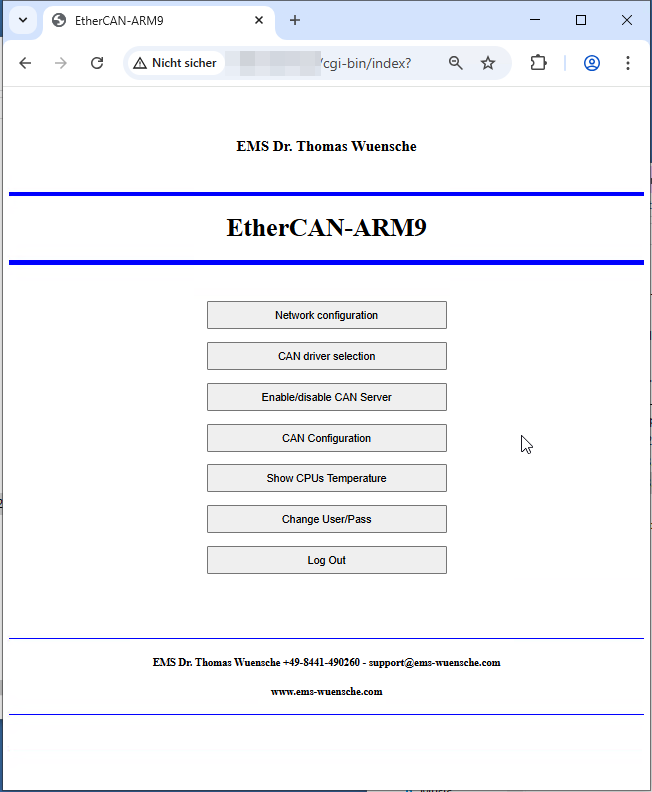

The following window appears:
-
-

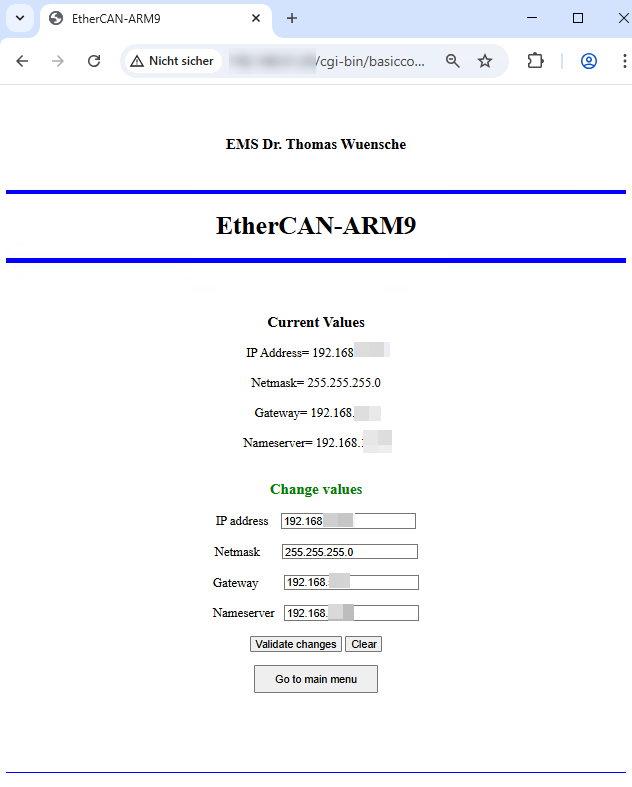

Open Network configuration – Validate – IP settings and make the following settings:
-

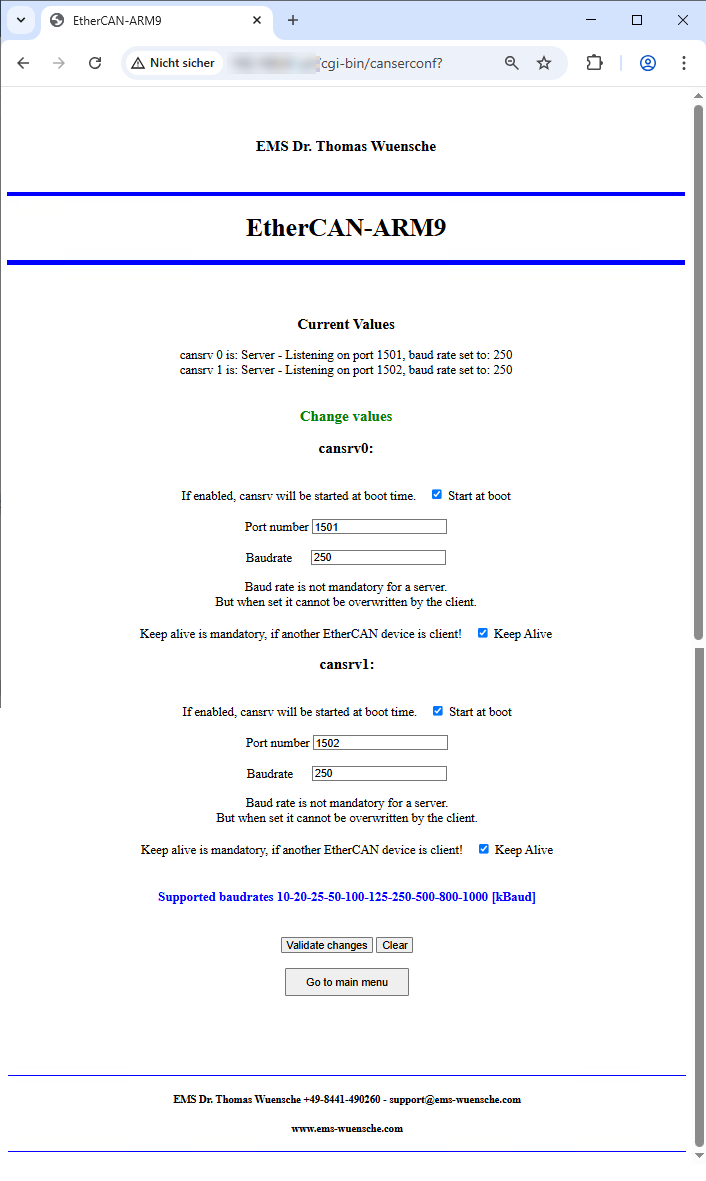

Open CAN Configuration – CAN bus Baudrate and make the following settings:
-
Save the changes and restart the device.
It is not usually necessary to adjust the other parameters.
Default configuration
The default delivery of EtherCAN CI has the following parameters set:
|
IP address |
192.168.1.15 |
|
Netmask |
255.255.255.0 |
|
Gateway |
none |
|
Nameserver |
none |
|
CAN driver selection |
EMS driver |
|
CAN 1 |
Server Port: 1501 Start at boot: enabled Keep alive: enabled Baudrate: 250 kBaud |
|
CAN 2 |
Server Port: 1502 Start at boot: enabled Keep alive: enabled Baudrate: 250 kBaud |
