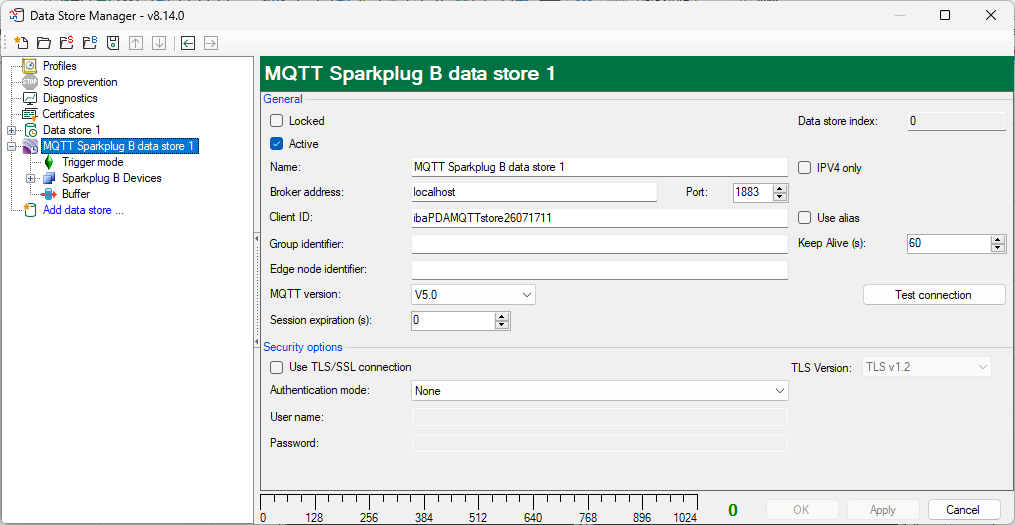

The basic settings correspond to those of the MQTT timebased data store, see chapter MQTT timebased data store:

Locked, active, name of the data store, broker address, port, client ID, MQTT version, session expiration, use alias, security options.

The following settings specifically apply to MQTT Sparkplug B data store:

Group identifier

The group identifier according to the Sparkplug B specification.

Edge node identifier

ibaPDA acts as an edge node, as defined in the Sparkplug B specification. Enter here the required edge node name.

The data path for the topic with the Sparkplug B message is defined as follows: “spBv1.0/<Group identifier>/<message type>/<Edge node identifier>/
